Radar Plugin radar.swf / radar.js Version 1.0.8.15

Select Version:

• 1.21
• 1.20.11
• 1.20.10
• 1.20.9
• 1.20.8
• 1.20.7
• 1.20.6
• 1.20.5
• 1.20.4
• 1.20.2
• 1.20.1
• 1.20
• 1.19-pr16
• 1.19-pr15
• 1.19-pr14
• 1.19-pr13
• 1.19-pr3
• 1.18
• 1.0.8.15
• 1.0.8.14
• 1.0.7

• The radar plugin shows the current viewing cone / area.
• It can be used on a floor map image to show the current viewing direction and field of view on it. Use the parent attribute to align in on a map image. Additionally it would be possible to mask out the radar to a specific area by applying an alpha mask image with the plugin mask attribute.
• The pano viewing direction can be changed by dragging the radar cone with the mouse. (Can be disabled by setting enabled="false".)
• The position and size of it can by adjusted with the standard plugin attributes.
• See the Radar Heading topic for instruction about how to setup the radar/pano heading.

Syntax

Usage Example:

<plugin name="radar"
        url="radar.swf"
        alturl="radar.js"
        parent="map"
        align="lefttop"
        edge="center"
        x="100" y="50"
        scale="5.0"
        heading="0.0"
        headingoffset="90.0"
        fillcolor="0x3F3F3F"
        fillalpha="0.5"
        />

Dynamically set the heading and x/y position:

set(plugin[radar].x, 203);
set(plugin[radar].y, 555);
set(plugin[radar].heading, 91.8);

Plugin Attributes

• heading
  • The heading of the current pano in degrees, need to align the pano orientation with the radar on the map, default=0.
    See the Radar Heading topic for more details.
• headingoffset
  • An offset for the heading value.
  • The default value for headingoffset is 90, which means heading=0 is pointing to right/east by default. Use headingoffset=0 to let heading=0 pointing to top/north.
• editmode  (optionally)
  • Enable the radar Heading Edit Mode, it helps finding the heading for the pano. Possible setting: true or false, default=false.
    When enabled (set to true) it is possible to right-click the radar and enable the editing of the heading. See the Radar Heading topic for more details.
• linecolor  (optionally)
  • The line color of the border line around the radar cone, default=0xFFFFFF.
• linewidth  (optionally)
  • The width of the border line around the radar cone, default=0.
• linealpha  (optionally)
  • The alpha of the border line around the radar cone, default=0.3.
• fillcolor  (optionally)
  • The fill color, default=0xFFFFFF.
• fillalpha  (optionally)
  • The alpha of the fill color, default=0.5.
• invert  (optionally)
  • Invert the radar cone. The cone will not fill the field of view, it will field the other area. Possible setting: true or false, default=false.

Radar Aligment / Pano Heading

The heading the defines the orienation of the pano. It must be defined for each pano to align the radar to the map correctly.

The radar plugin includes a Radar Heading Edit Mode that helps finding the heading for the pano.

Here a how to for using the Edit Mode to find out the heading:

1. Enable the Edit Mode of the radar plugin by setting the editmode attribute to true:

   <plugin name="radar"
           url="radar.swf"
           ...
           heading="0"
           editmode="true"
           />

2. Right-click the radar and select "Radar Plugin - Edit Heading":

3. Now you can drag the radar to adjust the heading, find the heading where the pano view and the radar are showing the same view. There will be a red crosshair in the pano and a red line in the radar for helping finding the same point. The current heading and addtional information about the current xml or scene will be shown on the screen:

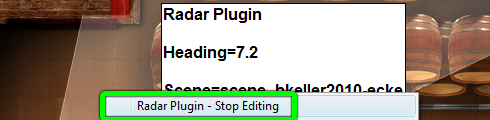

4. When done end the edit mode by right-click the radar again: The heading value will be copied into the system clipboard.

Examples

Barrique Vine Cellar Tour - Image-Map with Radar Navigation (Edit Mode enabled)
