krpano XML Reference Version 1.19-pr15

krpano uses simple xml text files for storing the settings for the krpano viewer. These files can be written or edited with any usual texteditor, but when writting the xml code, it is important that the xml-syntax-rules will be respected! These basic rules are the same for all xml files and not specific to krpano.

For more information about the basic xml syntax, please have a look here:
Basic XML Syntax Rules

About this documentation

This documentation is about the krpano xml structure, about all krpano xml elements, attributes and values and their mapping to their dynamic krpano variable names.

The documentation is split into normal and 'advanced' parts. This was done for better readability and more clearness. The advanced elements and attributes are hidden by default and can be shown (or hidden) by pressing the show / hide advanced settings button withhin each part of the documentation.

Documentation topics:
For the dynamic usage of the krpano variables and actions have a look at the:
krpano Actions / Scripting Reference

The krpano XML structure

Here a structured listing of all krpano xml elements: (click on an element to get more information)
show / hide advanced settings<krpano>
    <include>
    <preview>
    <image>
    <view>
    <area>
    <display>
    <control>
    <cursors>
    <autorotate>
    <plugin>
    <layer>
    <hotspot>
    <style>
    <events>
    <action>
    <contextmenu>
    <network>
    <memory>
    <security>
    <textstyle>
    <lensflareset>
    <lensflare>
    <data>
    <scene>
    <set>
    <debug>
</krpano>
  • The root element of the xml file need to be the <krpano> element. All other elements must be placed inside this element.
  • All xml elements and attributes in the krpano xml are optionally and can be defined a several times and in any order. When the same element will be defined again two or more times, then the later/following declarations will overwrite the previous ones.
  • It's also possible to define additional <krpano> elements inside the root <krpano> element itself for declaring additional settings at the krpano scope.
  • The xml itself is just a transport-format - that means it will be only used to transport the data for the krpano viewer. When the xml will parsed, then the xml elements will be transformed/mapped into the krpano internal data structures. That means after parsing there is internally no xml anymore.

Special krpano XML elements and attributes

Some xml elements and attributes are handled in a special way in krpano. This special handling happens already during the xml loading and parsing.
<xmlelement name="..." ... />
The name attribute ⇒ defining Array elements:

When a xml element has a name attribute, then this element will be interpreted as element / item of an Array. The name of the Array is the name of the xml element itself. When no Array with that name already exists, it will be automatically created.
When the element / item already exists, then the attributes that were defined at the xml element will be still set and overwrite already existing values.

This means there can be several declarations of a xml element, but each element would need to have its own unique name for identification.

Important notes about the name attribute:
  • Each name needs to begin with an alphabetic character!
  • That means using a number as name is not allowed!
  • When a name still begins with a numeric character, then the name will be interpreted as array index. This is okay for dynamic index-based access inside actions but not for defining the elements!
  • All names will get converted automatically to lower case to allow direct case insensitive access!
<xmlelement url="..." ... />
The url attribute:

When a xml attribute is named 'url' or begins or ends with 'url' (e.g. like 'videourl'), the value of the attribute will be intrepted as url / path to a resource.

When a relative path will be used as url value, then the path will be automatically adjusted to be relative to the xml file in which the url attribute was defined. That means relative paths in a xml will be always relative to the xml itself.
But note - when setting / changing the url attribute dynamically, then there is no automatic relation to the xml anymore!

To make the path relative to some special predefined paths, it's possible to use some of these placeholders in the url path:
  • %FIRSTXML% - Path of the first loaded xml file.
  • %CURRENTXML% - Path of the current loaded main xml file (not the included one).
  • %SWFPATH% - Path of the krpano viewer file.
  • %HTMLPATH% - Path of the html file.
  • %BASEDIR% - Use the basedir path.
  • %$VARIABLE% - Use the value of the given 'VARIABLE' - this can be any krpano variable, but it must be defined before the current xml or scene will be loaded, e.g. already in the html file during embedding (via initvars) or before loadpano(), loadscene() calls.
<xmlelement ... devices="...">
    <childrenelement ... />
    ...
</xmlelement>
The devices attribute:

The devices attribute defines if the given xml element and all its children elements should be used or skipped on a given device.

Syntax:
  • The value of the devices attribute can be one or more of the available devices.
  • Several devices can be combined by using these logical operators:
    • A plus + character or the string .and. can be used as AND operator to check if all devices settings are matching
    • A pipe | character or the string .or. can be used as OR operator to check if one of the given devices settings is matching
    • An exclamation mark ! character or a no- prefix before a devices setting can be used to check if the given devices setting is NOT set
    • Resolving order: The AND checks will be resolved before the OR checks.
Note - for checking for the devices settings dynamically in actions code, use the device object and the if() or calc() actions.
Available devices:
flash
html5
Use only in the krpano Flash viewer.
Use only in the krpano HTML5 viewer.
desktop
normal
tablet
mobile
handheld
Use only on desktop devices.
Use only on desktop and tablet devices.
Use only on tablet devices.
Use only on mobile devices.
Use only on mobile and tablet devices.
css3dUse only when CSS-3D-Transforms are available.
webglUse only when WebGL is available.
multiressupportUse only when the browser is capable for multires.
panovideosupportUse only when the browser is capable for panoramic video.
fullscreensupportUse only when the Fullscreen mode is supported.
fractionalscalingUse only when a fractional page-scale or pixelratio is set.
mouseUse only on devices with mouse support.
touchUse only on devices with Multi-Touch support.
iosUse only on iOS devices (iPhone, iPod, iPad).
ios###Use only when the iOS version is equal or higher than ###.
iphone
ipod
ipad
Use only on the iPhone (and iPod Touch).
Use only on the iPod Touch.
Use only on the iPad.
androidUse only on Android devices.
androidstockUse only in the old 'stock' (=WebKit-based) Android browser. Newer Android browsers are based on Chrome.
chrome
chromemobile
firefox
ie
edge
safari
Use only in the Chrome browser
Use only in the Mobile Chrome browser (Android, Silk)
Use only in the Firefox browser.
Use only in the Internet Explorer browser.
Use only in the Microsoft Edge browser.
Use only in the Safari browser.
standaloneUse only in the Standalone Flashplayer.
windows
mac
linux
Use only on Windows systems.
Use only on Mac OSX systems.
Use only on Linux systems.

Examples
devices="html5"
devices="flash"
devices="desktop"
devices="mobile"
devices="tablet"
devices="ios"
devices="android"
devices="ios8.0" = iOS 8.0 or higher
devices="androidstock" = older android devices
devices="flash|webgl" = systems with fisheye-distortion support
devices="flash.or.webgl" (new syntax)
<xmlelement attribute.devicecheck="..."
            attribute.devicecheck="..."
            ...
            />
Device checks for attributes - XML attributes with a dot in their name:

By adding a dot . character at the end of an attribute name and then there the names of one or more devices, it is possible to define that attribute only for that given devices.

Syntax:
  • Everything before the first dot belongs to the name of the attribute itself and everything after the first dot belongs to the device check.
  • All the devices as in the devices attribute can be used for the device checks.
  • Mixing several devices is possible via logical AND, OR and NOT operators:
    • An .and. can be used as AND operator to check if all given devices settings are matching (like the + character in the devices attribute).
    • An .or. can be used as OR operator to check if one of the given devices settings is matching (like the | character in the devices attribute).
    • A no- prefix before a devices setting can be used to check if the given devices setting is NOT set (like the ! character in the devices attribute).
    • Resolving order: The AND checks will be resolved before the OR checks.
  • Important to know: The order of xml-attributes is random and can differ each time! That means the order how the attributes were defined in the xml file don't need to be the same how they will be get loaded/parsed. Therefore never redefine attributes again other devices settings that would override previous definitions.!

Examples
scale.normal="1.0" (the same as: scale.desktop.or.tablet="1.0")
scale.mobile="0.5"
url.flash="plugin.swf"
url.html5="plugin.js"
videourl.desktop="video-high-profile.mp4"
videourl.mobile.or.tablet="video-baseline-profile.mp4"
width.desktop="200"
width.tablet="150"
width.mobile="100"
visible.fullscreensupport="true"
visible.no-fullscreensupport="false"
visible.html5.and.webgl.or.flash="true"
visible.html5.and.no-webgl="false"
<xmlelement ... if="condition">
    <childrenelement ... />
    ...
</xmlelement>
The if attribute:

When a xml element has an if attribute, then the xml element and all its children elements will be only used when the given condition will be true.

When using variables in the if condition, then these variables need to be defined before (=above) the current xml element. Additionally there is one special case here - when using xml if checks on <include> elements, then the variables used in the if check, need to be defined before the current xml gets loaded. This could be done in the html file during embedding by using the initvars setting or in the xml before doing a loadpano() call.

Examples
In the html file:
embedpano({..., initvars:{design:"flat"}, ...});
In the xml file:
<include url="design_default.xml" if="design == default" />
<include url="design_flat.xml"    if="design == flat"    />
<style name="stylename" attributes ... />
<xmlelement ... style="stylename" ... />
<style> elements and the style attributes:

The <style> element is a collection / storage element for any kind of attributes.

Every other xml element that has a name attribute can also have a style attribute. When the xml element will be first created, all attributes defined at the <style> element will be copied to the element itself. This will be done before the attributes that are defined at xml element itself will be applied.

That means it's possible to predefine some settings in the <style> element and then overwrite them later with the attributes defined directly at the element.

Examples
<style name="spotstyle" url="spotimage.png" />
<hotspot name="spot1" style="spotstyle" ... />
<hotspot name="spot2" style="spotstyle" ... />
<xmlelement attribute="get:variable" ... />
<xmlelement attribute="calc:expression" ... />
When the value of a xml attribute starts with get: or calc::

In this case the value for the xml attribute will get from an other variable or calculated using an expression.

The variables used in the get: or calc: need to be defined before (=above) the current xml element. Additionally there is one special case here - when using this on <include> elements, then the variables used there, need to be defined before the current xml gets loaded. This could be done in the html file during embedding by using the initvars setting or in the xml before doing a loadpano() call.

Examples
<settings width="100" height="50" />
...
<layer ...
       width="get:settings.width"
       height="calc:settings.height * 2"
       />
<include url="..." />
The <include> elements - include other xml files:

<include url="path/name.xml" />

The <include> elements will be resolved as first step during the xml loading. The requested include url file will be loaded and the content of the loaded xml will replace the <include> element in the current xml.

After all <include> elements are loaded and resolved, the viewer will start to parse the loaded xml data and map the informations from xml to the dynamic runtime data structures and objects.

Examples
<include url="settings.xml" />
<include url="skin/skin.xml" />
<include url="%SWFPATH%/global.xml" />


XML elements / attributes / values / variables

Here detail documentations about the krpano xml elements:
<krpano> show / hide advanced settings
This is the main / root element of a krpano xml file.
All further xml elements need to be defined within this element.

Advanced notes - when the xml gets parsed and resolved into the data structures the leading 'krpano' tag will be stripped away. This makes it possible to define another <krpano> elements inside the current one to define or redefine settings from the previous definition.

<krpano version="1.19-pr15"
        onstart=""
        basedir="%FIRSTXML%"
        bgcolor=""
        idletime="0.5"
        colorcorrection="default"
        logkey="true"
        strict="false"
        showerrors="true"
        debugmode="false"
    >
    ...
</krpano>

Attribute nameFull variable nameTypeDefault value
version xmlversion String "1.19-pr15"
Information about the krpano version that was used for creating the xml file. This is mainly only an information for orientation, but it should be still defined to allow handling potential compatibility-related version changes.
Attribute name / Full variable nameTypeDefault value
onstart Action Event
The onstart event will be called directly at the start after the xml loading and parsing.
Attribute name / Full variable nameTypeDefault value
basedir String "%FIRSTXML%"
The basedir setting defines the base directory for all following loadpano() action calls.

This can be a relative or an absolute path and it's also possible to use the url placeholders here.

The defaultvalue is %FIRSTXML% and that means that all relative xml paths of all following loadpano() action calls are relative to the first loaded xml file.
Attribute name / Full variable nameTypeDefault value
bgcolor String
The viewer background color. That background color can be only seen before a pano image will be loaded or when using partial panos / flat images that are not covering the full view.
  • When set to a valid color number in hex format (e.g. "0xFFFFFF" for white), a background shape with that color will be rendered behind the pano.
  • When not set or set to an invalid value - no background shape will be used, and it behave 'transparent' and shows the Flashplayer default background color (changeable in the html file) or the html page when using the wmode="transparent" embedding setting.
  • Flash only: when set, it also allows using the mouse 'outside' the pano image for navigation (e.g. when using partial panos) and it allows the correct blending between differently sized partial panos.
Attribute name / Full variable nameTypeDefault value
idletime Number 0.5
The time in seconds without any user-interaction before calling the onidle event.
Attribute name / Full variable name (Flash only)TypeDefault value
colorcorrection String "default"
Change the color correction settings of the Flashplayer.
See here for more details: Flashplayer10 colorCorrection

Possible settings: "default", "on", "off"

Warning - there can be performance degrades when set to "on" !
Attribute name / Full variable nameTypeDefault value
logkey Boolean true
Enable/disable the 'O' keyboard key, which switches the Output / log window on / off. Note - this parameter will be only checked once at startup!
Attribute name / Full variable nameTypeDefault value
strict Boolean false
Enable or disable the 'strict mode' of the expression parser.

When enabled variables will no longer 'automatically' resolve to their value inside expressions. This avoids accidentally mix-ups between variables and strings. Additionally some special backward-compatibility workarounds (like when comparing empty %N parameters) will be disabled.

See also here:
Strict / non-strict comparisons
Attribute name / Full variable nameTypeDefault value
showerrors Boolean true
Should the output/trace log window open automatically when an error happens to show the error message.
Attribute name / Full variable nameTypeDefault value
debugmode Boolean false
Should debug messages from plugins or action code be shown in the log.

Additionally: When the debugmode is enabled, then the versioninfo field of the contextmenu will be always displayed and can be clicked or touched to open or close the krpano log.
Examples
Directly load a scene on startup:
<krpano version="1.19" onstart="loadscene(scene1);">
  <scene name="scene1">
  ...
  </scene>
</krpano>
<preview> show / hide advanced settings
Define the url / filename to a small 'preview' panorama image that will be displayed while loading the full pano image. This preview image should should be small (in filesize and image dimensions) to allow fast loading!

Note - For best rendering quality and performance the usage of cubestrip images will be recommended! High quality preview images (smoothed along all edges and all directions) can be easily created by using the krpano tools.

<preview type=""
         url="previewpano.jpg"
         striporder="LFRBUD"
         />

Attribute nameFull variable nameTypeDefault value
type preview.type String
Set the panoramic type of the preview image.

Possible settings:
  • empty, not set, the default - when not set, the type of the preview image will be detected automatically by its image-size and side-aspect (e.g. 2:1 = sphere, 1:6 = cubestrip, ...)
  • SPHERE - spherical pano image
  • CYLINDER - cylindrical pano image
  • CUBESTRIP - a 1x6, 6x1, 3x2 or 2x3 cubestrip image
  • grid(...) - generate a grid preview image
    grid(type,xsteps,ysteps,res,linecol,bgcol,pntcol)
    • Parameters:
      • type = SPHERE or CUBE (must be defined)
    • Optional parameters:
      • xsteps = horizontal distance between lines in pixels, default=64
      • ysteps = vertical distance between lines in pixels, default=64
      • res = resolution of gridimage, default=512
      • linecol = color of lines in hex-format (default=0x666666)
      • bgcol = background color (default=0x222222)
      • pntcol = color of points (default=same as linecol)

When the main <image> is a partial pano, then the preview pano will use automatically the same hfov / vfov / voffset settings.
Attribute nameFull variable nameTypeDefault value
url preview.url String
The url / path to the preview image.

This can be a spherical, cylindrical or a cubestrip (1x6, 6x1, 3x2 or 2x3) image.

When the main <image> is a partial pano, then the preview pano will use automatically the same hfov / vfov / voffset settings.
Attribute nameFull variable nameTypeDefault value
striporder preview.striporder String "LFRBUD"
Defines the order of the images in the cubestrip image.
Examples
Use an preview image:
<preview url="preview.jpg" />
Use a synthetic grid image as preview pano:
<preview type="grid(CUBE,16,16,512,0xCCCCCC,0xFFFFFF,0x999999);" />
<image> show / hide advanced settings
With the <image> element the pano image will be defined.
Set here the type, the sizes and the url paths to the images / tiles.

CUBE CUBESTRIP SPHERE CYLINDER FISHEYE FLAT VIDEO + Multires – Multires
<image type="CUBE" prealign="" type="CUBE"
       multires="true"
       multiresthreshold="0.025"
       progressive="true"
       tilesize="..."
       baseindex="1"
       frames="1"
       frame="1"
       prealign=""
 >
  <level tiledimagewidth="..."
         tiledimageheight="..."
         tilesize=""
         aspreview="false"
   >
    <cube url="pano_%s_%v_%h.jpg" />
  </level>
  <level ...>
    ...
  </level>
  ...
</image>
Attribute nameFull variable nameTypeDefault value
type image.type String
Define the type of the panorama image.

Possible values:
  • CUBE
    A cubical panoramic image - six images, one image per cube side.
  • CUBESTRIP
    A cubical panoramic image as 'imagestrip' in one single image. Supported cubestrip formats are 6x1, 1x6, 3x2 or 2x3. The cube-side alignment itself always need to be: L,F,R,B,U,D (the krpano default).
  • SPHERE
    A spherical / equirectangular panoramic image.
    Partial panos are possible by setting custom hfov, vfov and voffset settings.
  • CYLINDER
    A cylindrical panorama image.
    Partial panos are possible by setting custom hfov, vfov and voffset settings.
  • ... when not set:
    When the type is not set, the viewer tries to detected the type automatically by the tags inside the <image> tag (that works only for non-multires images).
Attribute nameFull variable nameTypeDefault value
hfov image.hfov Number
Defines the horizontal field of view (hfov) of the pano image in degrees.
This is the visible range that was captured on the pano image.
The default value will be 360, which means a view all around. Use a smaller value for partial panos. For Flat panos (or normal images) the value "1.0" should be used.
Attribute nameFull variable nameTypeDefault value
vfov image.vfov Number
Defines the vertical field of view (vfov) of the pano image in degrees.
By default (when no value was set), this value will be calculated automatically by using the hfov, the type of the pano and the side aspect of the pano image.
Attribute nameFull variable nameTypeDefault value
voffset image.voffset Number 0.0
Defines the vertical offset of the pano image in degrees.
By default the pano image will be centered in the 3D space. This means the viewing range will be from -hfov/2 to +hfov/2 and from -vfov/2 to +vfov/2.
Now when using a partial pano image where the horizon is not in the middle of image (not at 0 degree), then this image will be displayed distorted.
The voffset can be used to shift the fov range up or down to center the image correctly in the 3D space.

How to get the correct voffset value:
When the vertical range of the pano image is known, then it can be calculated:
voffset = (vfov_min + vfov_max) / 2

e.g. for a 240x90 pano with the field of view from -70° (up) to +20° (down):
vfov_min = -70
vfov_max = +20
voffset = (-70 + 20) / 2 = -25
or see the result for a 360x180 pano with -90 to +90:
vfov_min = -90
vfov_max = +90
voffset = (-90 + 90) / 2 = 0.0

When the vertical range is unknown - just try out some values (negative and positive ones in the range from -90 to +90). Additionally it can be helpful here to set
<view limitview="off" />
in the xml to allow viewing the whole partial image without viewing limitations.
Attribute nameFull variable nameTypeDefault value
multires image.multires Boolean false
Enables the usage of tiled multi-resolution images.

When set to true, then the <image> element need to contain several <level> elements with the image definitions for each multi-resolution level.
Attribute nameFull variable nameTypeDefault value
multiresthreshold image.multiresthreshold Number 0.025
The multiresthreshold value controls, depending on the fov/zoom, when to switch from one multi-resolution level to the next one. Suitable values are from -1.0 to +1.0. When there is too much aliasing, try negative values like -0.5.
Attribute nameFull variable nameTypeDefault value
tilesize image.tilesize int
Define the tilesize for multires images.
Attribute nameFull variable nameTypeDefault value
baseindex image.baseindex int 1
The index base (numbering start) for the tile indicies.
Attribute nameFull variable name (Flash only)TypeDefault value
progressive image.progressive Boolean false
Enables or disables progressive multi-resolution loading.

Progressive loading means that the multi-resolution pano will be loaded step by step from low to high resolution. Only the tiles in the current viewing range will be loaded from level level.

When disabled, then the tiles for current resolution will be loaded at first, and then when the loading of all current visible tiles was done, it will start preloading the lower resolutions of the current view.
Attribute nameFull variable nameTypeDefault value
cubelabels image.cubelabels String "l|f|r|b|u|d"
The labels for the %s cube side url placeholder. The default labels are l|f|r|b|u|d (left, front, right, back, up, down).
Attribute nameFull variable nameTypeDefault value
cubestrip.striporder image.cubestrip.striporder String "LFRBUD"
Defines the order of the images in the cubestrip image.
Attribute nameFull variable nameTypeDefault value
stereo
stereolabels
stereoformat
image.stereo
image.stereolabels
image.stereoformat
Boolean
String
String
false
"1|2"
"TB"
Enables the usage of stereo images (HTML5 and WebGL only).

When using cube images, then the image urls should contain a %t placeholder. This placeholder will be replaced by values from the stereolabels setting. For the left image the first value will be used and for the right image the second one.

For spherical or cylindrical images or videos it is possible to use 'frame-packed' stereo images. The stereoformat setting defines the packing order:
  • stereoformat="TB" - Top/Bottom
  • stereoformat="SBS" - Side-By-Side
Example - stereoscopic cube image:
<image stereo="true" stereolabels="1|2">
<cube url="pano_%s_%t.jpg" />
</image>
Example - stereoscopic panoramic video:
<image stereo="true" stereoformat="TB">
<sphere url="plugin:video" />
</image>

Note - depending on the pixel-size (and side-aspect) of the pano image or video, it can be necessary to set manually the hfov, vfov and voffset settings.
Attribute nameFull variable nameTypeDefault value
prealign image.prealign String
With the prealign setting the pano image itself can be aligned / rotated.
This can be used to correct a miss-aligned pano.

The syntax:
prealign="X|Y|Z"
where X, Y, Z defines the rotation about these axis in degrees.

Dynamically changing the prealign setting is possible, but requires a updateobject(true,true) action call to update the image.
Attribute nameFull variable name (HTML5 only)TypeDefault value
sphere.mapping image.sphere.mapping String
Define the mapping / projection of the spherical input image.

Possible settings:
Attribute nameFull variable nameTypeDefault value
fisheye.fov
fisheye.align
fisheye.crop
fisheye.lenscp
image.fisheye.fov
image.fisheye.align
image.fisheye.crop
image.fisheye.lenscp
Number
String
String
String
180.0
"y|p|r"
"l|r|t|b"
"a|b|c|d|e"
Fisheye image support (HTML5 and WebGL only).

With the fisheye settings it's possible to use fisheye photos and videos in krpano.

For correctly straighten and aligning the fisheye image, it's necessary to know some parameters about it. A good tool for getting these parameters is PTGUI.

Fisheye settings:
  • fov="180.0"
    • The field-of-view of the fisheye image (in degrees).
    • Related to the crop size.
    • Source: Can be directly taken from the PTGUI fov image parameter.
  • align="yaw|pitch|roll"
    • The aligment / rotation / leveling of the image (in degrees).
    • Source: Can be directly taken from the PTGUI image parameters.
      (e.g. use vertical-line control points to align / level the image)
  • crop="left|right|top|bottom"
    • The edges of the fisheye fov cropping circle (in pixels).
    • The circle relates to the fov size.
    • Source: Can be directly taken from the PTGUI crop settings.
  • lenscp="a|b|c|d|e"
    • The lens correction parameters.
    • Source: Can be directly taken from the PTGUI lens settings.

PTGUI Screenshots for getting the fisheye parameters:
Attribute nameFull variable nameTypeDefault value
mjpegstream image.TYPE.mjpegstream String
MJPEG image streaming over HTTP support (HTML5 and WebGL only).

With this setting it's possible to use HTTP MJPEG video streams as source for the pano image. The supported images types are: <sphere>, <cylinder> and <fisheye>.

The image url needs to point directly to to MJPEG stream source.

Possible settings:
  • true or auto - Automatic updating / refreshing:
    • During movement in the viewer pause the image updating for getting a smoother panning and zooming,
    • and when there is no movement and standing still constantly update the video image.
  • A number between 0.0 and 60.0
    • Manually set the update / refresh rate in frames-per-seconds.
    • The video image will be constantly updated with that rate, regardless if there is a movement or no movement in the viewer.

Browser support:
  • All modern browsers and devices - Firefox, Chrome, Safari, iOS, Android ...
  • ... except IE11 and MS Edge are supported.
Attribute nameFull variable name (Flash only)TypeDefault value
frames
frame
image.frames
image.frame
int
int
1
1
Current frame and number of frames of the pano.
It's possible to use several frames for a pano image, there the %f placeholder must be used in the image urls. That placeholder will be replaced with the current set frame number.
Full variable name (as3 usage only)TypeDefault value
image.layer Sprite
Actionscript 3 Sprite object of the pano image layer.
Full variable name (read only)TypeDefault value
image.level.count int 0
The count / number of all image level elements.
Attribute nameFull variable nameTypeDefault value
level[..].tiledimagewidth level[..].tiledimageheight image.level[..].tiledimagewidth image.level[..].tiledimageheight int
int
The full / total size of the tiled image for this level.
Attribute nameFull variable nameTypeDefault value
level[..].tilesize image.level[..].tilesize int
This setting will overrule the main image.tilesize setting for this level.
Attribute nameFull variable nameTypeDefault value
level[..].aspreview image.level[..].aspreview Boolean false
Use this level as preview image.
This also forces the whole level to be fully loaded.

About the image url placeholders

Depending on the image type and the related settings, the url of the image should contain several placeholders to allow addressing the right image file.

These url placeholders are available:
  • for the cube side: %s ⇒ a placeholder for the cubelabels
  • for the horizontal tile index: %h, %x, %u or %c (all the same)
  • for the vertical tile index: %v, %y or %r (all the same)
  • for stereo images: %t ⇒ a placeholder for the stereolabels
  • for the current image frame: %fimage.frame (Flash only)
Each placeholder can be used a several times in the url - e.g. as part of the filename and also as part of the foldername.

Tile-index padding:

By inserting one or more 0 characters between the % character and the character of the tile-index placeholder, it's possible to define a custom padding for the numbers.
E.g. %h ⇒ 1,2,3,...,9,10,11, %0h ⇒ 01,02,03,...,09,10,11, %00h ⇒ 001,002,003,...,009,010,011.
<view> show / hide advanced settings
The view element contains the information about the current view.
In the xml it can be used to set the startup view settings.

The looking direction will be defined by the hlookat / vlookat attributes (=horizontal / vertical lookat), and the current field of view in the fov attribute. For viewing limits for partial panos, the limitview attribute can be used.

<view hlookat="0.0"
      vlookat="0.0"
      camroll="0.0"
      fovtype="VFOV"
      fov="90.0"
      fovmin="1.0"
      fovmax="179.0"
      maxpixelzoom=""
      mfovratio="1.333333"
      distortion="0.0"
      distortionfovlink="0.5"
      stereographic="true"
      pannini="0.0"
      architectural="0.0"
      architecturalonlymiddle="true"
      limitview="auto"
      hlookatmin=""
      hlookatmax=""
      vlookatmin=""
      vlookatmax=""
      />

Attribute nameFull variable nameTypeDefault value
hlookat view.hlookat Number 0.0
The horizontal looking direction in spherical coordinates in degrees.

The typical range is from -180° to +180°. The value will not wrap around 360° but the view itself will. The value 0.0 points to the center of the pano image.
Attribute nameFull variable nameTypeDefault value
vlookat view.vlookat Number 0.0
The veritcal looking direction in spherical coordinates in degrees.

The typical range is from -90° upward at the zenith down to +90° at the nadir.
Attribute nameFull variable nameTypeDefault value
camroll view.camroll Number 0.0
The roll / rotation of the view camera in degrees.
Attribute nameFull variable nameTypeDefault value
fovtype view.fovtype String VFOV
Defines the type of the field of view that the fov value represents.

Possible settings:
  • VFOV - vertical field of view - based on the screen height
  • HFOV - horizontal field of view - based on the screen width
  • DFOV - diagonal field of view - based on the screen diagonal
  • MFOV - maximum field of view - based on the 'maximum' screen size:
    maximum screen size = max(screen width, screen height * mfovratio)
Note - on mobile and tablet devices the default value will be MFOV!
Attribute nameFull variable nameTypeDefault value
fov view.fov Number 90.0
The current field of view in degrees - from almost 0.0 to 179.0.
Attribute nameFull variable name (read only)TypeDefault value
hfov
vfov
view.hfov
view.vfov
Number
Number
The current horizonal and vertical fov values.

Can values are read-only and can be used only for dynamically checking the current field of view coverage.
Attribute nameFull variable nameTypeDefault value
fovmin view.fovmin Number 1.0
The minimum fov value, this will limit the zooming into the pano.

Note - maxpixelzoom setting can be used instead!
Attribute nameFull variable nameTypeDefault value
fovmax view.fovmax Number 179.0
The maximum fov value, this will limit zooming out of the pano.
Attribute nameFull variable nameTypeDefault value
maxpixelzoom view.maxpixelzoom Number
The maximum pixel zoom factor of the pano image.

This will limit the fov automatically depending on the pano resolution and the current viewing window, e.g. 1.0 = limit to 100% zoom, no pixel scaling of the source image will be visible.

Note - when set, this setting will overrule the fovmin setting, the fovmin value will be dynamically updated in this case.
Attribute nameFull variable nameTypeDefault value
mfovratio view.mfovratio Number 1.333333
The size ratio for the maximum screen size calculation when using the fovtype=MFOV setting. By default the ratio of a 4:3 screen (4/3 = 1.333) will be used.
Attribute nameFull variable nameTypeDefault value
distortion
fisheye (old name)
view.distortion
view.fisheye (old name)
Number
Number
0.0
0.0
Fisheye distortion effect (0.0 - 1.0).

This value contolls the interpolation between the normal rectiliniear view and the distorted fisheye view.

0.0 = no distortion / rectiliniear
1.0 = full distortion

There are two fisheye modes:
- normal (view.stereographic="false")
- stereographic (view.stereographic="true")
Attribute nameFull variable nameTypeDefault value
distortionfovlink
fisheyefovlink (old name)
view.distortionfovlink
view.fisheyefovlink (old name)
Number
Number
0.5
0.5
The fov and fisheye distortion settings are linked together (e.g. when zooming in - the fisheye effect will be reduced). This setting controls the correlation link between these two values: (0.0 - 3.0), 0=linear correlation, 3=dynamic correlation.
Attribute nameFull variable nameTypeDefault value
stereographic view.stereographic Boolean true
Enables/disables the stereographic fisheye projection.
The 'strongness' of the projection it is controlled by the fisheye setting. The stereographic projection allowes very interessting panorama views like the Little Planet Views.
Attribute nameFull variable nameTypeDefault value
pannini view.pannini Number 0.0
Apply a Pannini/Vedutismo projection (0.0 to 1.0).
The 'strongness' of the projection it is controlled by the fisheye setting.
Attribute nameFull variable nameTypeDefault value
architectural view.architectural Number 0.0
Architectural projection (0.0 - 1.0).
This value interpolates between the current projection (0.0) and the architectural projection mode (1.0).
Attribute nameFull variable nameTypeDefault value
architecturalonlymiddle view.architecturalonlymiddle Boolean true
When enabled, the architectural projection will be only used in the 'middle' area of the pano. When looking more up and down then the architectural projection will slowly switch back to normal projection.
Attribute nameFull variable nameTypeDefault value
limitview view.limitview String auto
Limit the viewing range in the pano.

Possible values:
  • off - no limiting at all
  • auto - automatic limiting (default)
  • lookat - limit the lookat variables direct to "hlookatmin", "hlookatmax", "vlookatmin", "vlookatmax"
  • range - limit to the area set by "hlookatmin", "hlookatmax", "vlookatmin", "vlookatmax", allow viewing only INSIDE this range
  • fullrange - limit to the area set by "hlookatmin", "hlookatmax", "vlookatmin", "vlookatmax", but allow zooming out to see the whole image (usefull for FLAT panos!)
  • offrange - limit to the area set by "hlookatmin", "hlookatmax", "vlookatmin", "vlookatmax", but don't limit the zooming in any way.
Notes to "range", "fullrange" and "offrange":
when the "hlookatmin", "hlookatmax", "vlookatmin", "vlookatmax" values were not set, they will be automatically calculated from the size of the pano image.
Attribute nameFull variable nameTypeDefault value
hlookatmin
hlookatmax
vlookatmin
vlookatmax
view.hlookatmin
view.hlookatmax
view.vlookatmin
view.vlookatmax
Number
Number
Number
Number
The minimum horizontal looking position in spherical coordinates (-180 .. +180).
The maximum horizontal looking position in spherical coordinates (-180 .. +180).
(When hlookatmax-hlookatmin=360 then no limiting will be done) The minimum vertical looking position in spherical coordinates (-90 .. +90).
The maximum vertical looking position in spherical coordinates (-90 .. +90).
Attribute nameFull variable name (read only)TypeDefault value
hlookatrange
vlookatrange
view.hlookatrange
view.vlookatrange
Number
Number
The current maximum horizontal looking range (same as hlookatmax - hlookatmin).
The current maximum vertical looking range (same as vlookatmax - vlookatmin).
Examples
Just set the looking direction and the field of view:
<view hlookat="0" vlookat="0" fov="80" />
Setup a 'little planet' view:
<view hlookat="0"
      vlookat="90"
      distortion="1.0"
      fov="150"
      fovmax="150"
      />
Good setting for viewing a flat pano:
<view hlookat="0"
      vlookat="0"
      maxpixelzoom="1.0"
      limitview="fullrange"
      />
<area> show / hide advanced settings
Defines the area / window where in the pano image should be displayed.

There are two modes to define the area position and size:
  • either by defining the size and the position (mode=align).
  • or by defining padding borders (mode=border).

It's possible to change/adjust these settings dynamically in the onresize event. When there are changes of the area settings outside of the onresize event, then a onresize event will be called on the next screen refresh, to allow a reaction on the next area/window size.

Note - all <layer> or <plugin> elements will be placed inside this area. To place a <layer> or <plugin> element outside that area, set the parent attribute of that layer / plugin element to "STAGE".
Attribute nameFull variable nameTypeDefault value
mode area.mode String "align"
Select the area positioning / sizing mode.

Possible settings: "align" or "border".

Align mode:
<area mode="align"
      align="lefttop"
      x="0"
      y="0"
      width="100%"
      height="100%"
      />

Border padding mode:
<area mode="border"
      left="0"
      top="0"
      right="0"
      bottom="0"
      />
Attribute nameFull variable nameTypeDefault value
align area.align String "lefttop"
Alignment / origin-point position of the area window on the screen.

Possible values: lefttop, left, leftbottom, top, center, bottom, righttop, right, rightbottom.
Attribute nameFull variable nameTypeDefault value
x
y
area.x
area.y
String
String
"0"
"0"
The x / y distance from the align point to the area window (only for mode=align).
This can be either an absolute pixel values or a percent values that are relative to the screen width / height.
Attribute nameFull variable nameTypeDefault value
width
height
area.width
area.height
String
String
"100%"
"100%"
The width / height of the area (only for mode=align).
This can be either an absolute pixel values or a percent values that are relative to the screen width / height.
Attribute nameFull variable nameTypeDefault value
left
top
right
bottom
area.left
area.top
area.right
area.bottom
String
String
String
String
"0"
"0"
"0"
"0"
The distances from the left / top / right / bottom edges of the screen to the area window (only for mode=border).
This can be either an absolute pixel values or a percent values that are relative to the screen width / height.
Full variable name (read only)TypeDefault value
area.pixelx
area.pixely
area.pixelwidth
area.pixelheight
int
int
int
int
The resulting area position (from left-top) and size in pixels (read-only).
Examples
A fixed size area in the center of screen:
<area align="center" width="640" height="480" />
Fixed size borders at top and bottom:
<area mode="border" top="10" bottom="100" />
Use only 75% of the available width:
<area width="75%" />
Some code to caluclate and set a fixed 16:9 aspect:
<events onresize="fixaspectresize(16,9);" />

<action name="fixaspectresize">
  div(aspect, %1, %2);
  mul(destwidth, stagewidth, aspect);
  copy(destheight, stagewidth);
  if(destwidth GT stagewidth,
      div(dwnscale, stagewidth, destwidth);
    ,
      set(dwnscale, 1.0);
    );
  mul(destwidth, dwnscale);
  mul(destheight, dwnscale);
  if(destheight GT stageheight,
      div(dwnscale, stageheight, destheight);
    ,
      set(dwnscale, 1.0);
    );
  mul(destwidth, dwnscale);
  mul(destheight, dwnscale);
  sub(destx, stagewidth, destwidth);
  sub(desty, stageheight, destheight);
  mul(destx, 0.5);
  mul(desty, 0.5);
  copy(area.x, destx);
  copy(area.y, desty);
  copy(area.width, destwidth);
  copy(area.height, destheight);
</action>
<display> show / hide advanced settings
Display settings for adjusting the display mode and the rendering quality / performance.

HTML5-related display settings:
<display autofullscreen="true"
         stereo="false"
         stereooverlap="0.0"
         stereoscale="1.0"
         monoside="1"
         anaglyph="false"
         safearea="auto"
         hardwarelimit=""
         usedesktopimages=""
         mipmapping="auto"
         loadwhilemoving="auto"
         framebufferscale="1.0"
         hotspotvrrendering="natural"
         />

Flashplayer-related display settings:
<display fps="60"
         details="24"
         tessmode="-1"
         movequality="LOW"
         stillquality="HIGH"
         flash10="on"
         movequality10="BEST"
         stillquality10="BEST"
         sharpen="12"
         stilltime="0.25"
         showpolys="false"
         />
Attribute nameFull variable name (HTML5 only)TypeDefault value
autofullscreen display.autofullscreen Boolean true
Automatically switch to fullscreen mode when rotating the mobile device to landscape mode (Android only).
Attribute nameFull variable name (HTML5 only)TypeDefault value
stereo
stereooverlap
stereoscale
display.stereo
display.stereooverlap
display.stereoscale
Boolean
Number
Number
false
0.0
1.0
Enable the side-by-side Stereo-rendering mode.

When the <image> is defined as stereo-image, then the left side will show the left image and the right side the right image. Without stereo-image both sides will show the same image.

The stereo-rendering mode can be used for VR displays. The WebVR plugin will enable this mode automatically when entering the VR mode.

The stereooverlap setting defines the overlapping of the left and right images: 0.0=no overlap, 1.0=full overlap. The WebVR plugin will use this setting for the IPD (Interpupillary distance) and lens settings.

The stereoscale setting defines the horizontal scaling:
  • For VR a setting of 1.0 should be used,
  • and for 3D-TV screens with 3D-HSBS-support a setting of 0.5 should be used.
Attribute nameFull variable name (HTML5 only)TypeDefault value
monoside display.monoside int 1
Define which side from stereo-images should be used for the normal monoscopic rendering: 1 = left, 2 = right.
Attribute nameFull variable name (HTML5 only)TypeDefault value
anaglyph display.anaglyph Boolean false
Enable the 3D-Anaglyph (red/cyan) Stereo-rendering mode.
Attribute nameFull variable nameTypeDefault value
safearea display.safearea String auto
Set how the 'safe-area' of the device display should be handled:
  • auto - All coordinates are relative to the safe-area (inside it).
  • h-only - Same as auto, but only the horizontal part of the safe-area will be respected, vertically the full display height will be used.
  • off - The safe-area will be ignored, all coordinates are relative to the full display area. Here the inset of the safe-area would need to managed manually via display.safearea_inset in the onresize event.
  • test:t r b l - set custom safearea-inset values to test/simulate the device support.

Note - to place a layer outside the safe-area use set the <layer> setting safearea=false.
Variable name (HTML5 only)TypeDefault value
display.safearea_inset Object null
When the display of the device has a 'safe-area' and the browser supports the safe-area-inset CSS variables, then this variable will be an Object with information about that safe-area. Otherwise it will be null.

When set, the Object has these member variables:
• l - left safe-area-inset
• t - top safe-area-inset
• r - right safe-area-inset
• b - bottom safe-area-inset

When the value of one of these variables is positive, then this is the safearea size outside of the krpano viewport. When it is negative, then the safearea is inside the viewport.

These values can change anytime when the device will be rotated, so they should be used only in the onresize event.
Attribute nameFull variable name (HTML5 only)TypeDefault value
hardwarelimit display.hardwarelimit int
Set the maximum pixel size for a CSS3D cube-face-image (non-tiled, non-multires). Larger images will be automatically downscaled to this size. This setting should be only used together with the devices setting for certain devices and situations.

The current default limits are:
• Desktop with WebGL - 4096
• Desktop with CSS3D - 2560
• Android / BlackBerry / Kindle / Windows Phone - 1024
• iPad - 1024
• iPhone 5/5S and higher - 1024
• iPhone 4/4S - 800
• iPod Touch (Retina) - 640
• iPhone / iPod Touch (Non-Retina) - 600
Attribute nameFull variable name (HTML5 only)TypeDefault value
usedesktopimages display.usedesktopimages Boolean false
On mobile and tablet devices the <mobile> images will be used by default (for non-multires images). With the usedesktopimages setting, it is possible to tell the viewer to use the desktop images also on these devices.
Attribute nameFull variable name (HTML5 only)TypeDefault value
mipmapping display.mipmapping String "auto"
Define if mipmapping should be used when displaying panos with WebGL.
Mipmapping can give a better visual quality and reduce aliasing.
Technically mipmapping is only possible on images/tiles that have power-of-two sizes.

  • auto (default)
    Automatic mode - use mipmapping automatically when the size of a cube-face-image is a power-of-two size like 1024px, 2048px or 4096px for non-tiled, single-res panos - or - when the tilesize is like 256px, 512px or 1024px for tiled/multires panos.
  • force
    Force the usage of mipmapping - this will be done by automatically resizing images to the next available power-of-two size. Note - the automatic resizing can cause a short delay on loading.
  • off
    Never use mipmapping.
Attribute nameFull variable name (HTML5 only)TypeDefault value
loadwhilemoving display.loadwhilemoving String
Control the tile reloading during movement (panning, zooming). The loading and adding of new tiles can interrupt smooth movements on slow devices.

  • true (default on Desktop)
    Always instantly load and add tiles.
  • auto (default on Mobile and Tablet)
    No reloading during direct on-the-screen user-interactions. Slightly delayed and scheduled reloading during movements without direct user-interaction (scripted lookto movements, autorotate, gyro, ...).
  • false
    No reloading during any movements. Reload only on halt.
Attribute nameFull variable name (HTML5 only)TypeDefault value
framebufferscale display.framebufferscale Number 1.0
Adjust / scale the size of the WebGL frame buffer.

A smaller number mean a lower resolution and fewer pixel to calculate. This could be used on slower mobile devices to increase the rendering performance.
Attribute nameFull variable name (HTML5 only)TypeDefault value
hotspotvrrendering display.hotspotvrrendering String "natural"
Define the appearance of non-distorted hotspots in VR mode.

Possible settings:
  • "natural" (the default) - the hotspots will be keep rotated toward the viewers eyes.
  • "screenspace" - the hotspots will be keep rotated toward the device screen (same as in normal non-VR viewing, but in VR there is no flat screen and so screen orientated things are looking wrong).

Attribute nameFull variable name (Flash only)TypeDefault value
fps display.fps int 60
The framerate in frames per second (fps) of the Flashplayer.
It should be something between 30 and 100, the default is 60.

Note - in the Flashplayer there is only one global framerate, this means the framerate setting can affect other flash elements when their animation is based on the framerate.
Full variable name (read only)TypeDefault value
display.currentfps Number
The current average framerate.
Full variable name (read only)TypeDefault value
display.frame int
The current frame number.
Attribute nameFull variable name (Flash only)TypeDefault value
details display.details int 24
Internal rendering tesslation details, a higher details value will result in a more detailed internal 3D-geometry. When using the Flashplayer 10 and cubical images without any distortion (fisheye, stereographic, ...) then this setting will be ignored, because a tesslation will be no necessary.
Attribute nameFull variable name (Flash only)TypeDefault value
tessmode display.tessmode int -1
The tesslation mode / the arrangement of the internal triangles, 1-5 or -1 (=automatic)
-1 means 0 for spheres and 3 for cubes.
Attribute nameFull variable name (Flash only)TypeDefault value
movequality display.movequality String "LOW"
The Flashplayer rendering quality while moving.
(only with flash10="off" or when using the Flashplayer 9)
Possible values: LOW, HIGH, BEST or HIGHSHARP*
Attribute nameFull variable name (Flash only)TypeDefault value
stillquality display.stillquality String "HIGH"
The Flashplayer rendering quality when not moving for stilltime seconds.
(only with flash10="off" or when using the Flashplayer 9)
Possible values: LOW, HIGH, BEST or HIGHSHARP*
Attribute nameFull variable name (Flash only)TypeDefault value
flash10 display.flash10 String "on"
Enable/disable the usage of the Flashplayer 10 rendering possibilities.
Possible values: "on", "off"

Since the Flashplayer 10 there are new rendering functions in the Flashplayer avialable. This functions allow to render flat surfaces (bitmaps) with a perfect 3D perspective distortion. In the older Flashplayer 9 on the other side, it was only possible to simulate the 3D perspective distortion bytesslating/spliting the 3D model into many small elements and draw the small elements without perspective distortion.

The new functions have advantages and disadvantages:
  • advantages: better quality, faster in high quality
  • disadvantages: slower (especially when rendering many elements), no automatic mipmapping
Note - when using the fisheye / stereographic distortion it is still necessary to tesslate/split the 3D model into many small elements. This can be slow with the usage of the Flash10 rendering functions. Therefore it would be recommended to disable Flash10 for that usage.
Attribute nameFull variable name (Flash only)TypeDefault value
movequality10 display.movequality10 String "BEST"
The Flashplayer rendering quality while moving.
(only with flash10="on" and using a Flashplayer 10 or higher)
Possible values: LOW, HIGH, BEST or HIGHSHARP*
Attribute nameFull variable name (Flash only)TypeDefault value
stillquality10 display.stillquality10 String "BEST"
The Flashplayer rendering quality when not moving for stilltime seconds.
(only with flash10="on" and using a Flashplayer 10 or higher)
Possible values: LOW, HIGH, BEST or HIGHSHARP*
Attribute nameFull variable name (Flash only)TypeDefault value
sharpen display.sharpen int 12
When the rendering quality is set to HIGHSHARP then the rendered image will be sharpened as post-process. With the sharpen setting it is possible to control the strength of that sharpen effect. Possible values are from 0 to 14.
Attribute nameFull variable name (Flash only)TypeDefault value
stilltime display.stilltime Number 0.25
The time in seconds after last movement in the pano before swtiching from movequality(10) to stillquality(10).
Attribute nameFull variable name (Flash only)TypeDefault value
showpolys display.showpolys Boolean false
Show the polygons of the internal 3D geometry.

* HIGHSHARP (Flash only): after rendering the pano in HIGH quality, the image will be additionally postprocessed with a 1 pixel unsharp-mask filter, this setting needs a lot of processing power so it should be only used for stillquality.
Examples
Set a lower hardwarelimit for older Android devices:
<display hardwarelimit="512" devices="androidstock" />
Force mipmapping even when the image/tile sizes are non-power-of-two sizes:
<display mipmapping="force" />

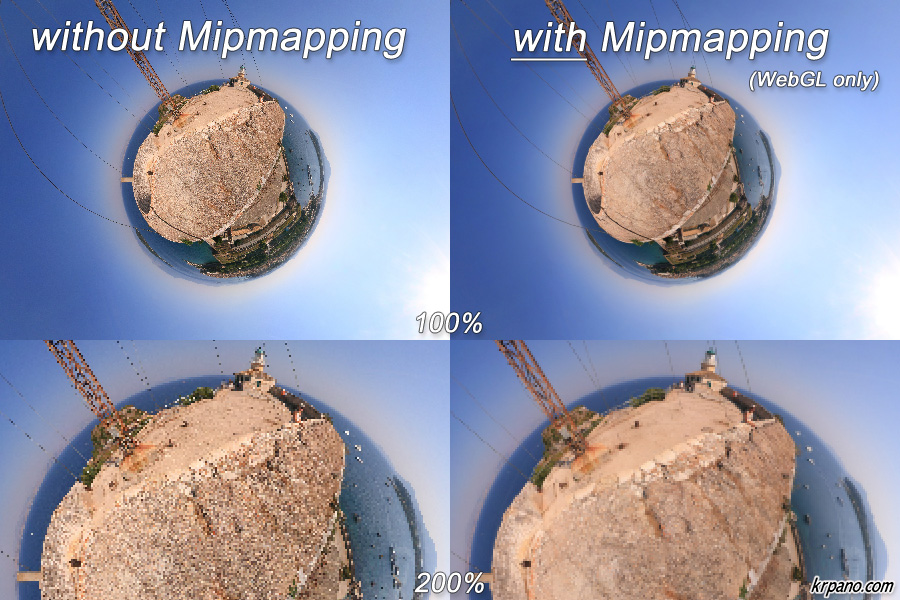

Mipmapping Screenshots:

Enable stereo-rendering:
<display stereo="true" />
Enable stereo-rendering at runtime:
set(display.stereo, true);
<control> show / hide advanced settings
The mouse and keyboard control settings.

Note - when the krpano viewer shouldn't capture the mouse-wheel usage over the viewer (e.g. to allow scrolling the webpage instead of zooming the pano), then have also a look at the mwheel embedding setting.

<control usercontrol="all"
         mouse="drag"
         touch="drag"
         dragrelative="true"
         draginertia="0.1"
         dragfriction="0.9"
         drag_oldmode="false"
         movetorelative="true"
         movetoaccelerate="1.0"
         movetospeed="10.0"
         movetofriction="0.8"
         movetoyfriction="1.0"
         keybaccelerate="0.5"
         keybspeed="10.0"
         keybfriction="0.9"
         keybinvert="false"
         keybfovchange="0.75"
         mousefovchange="1.0"
         fovspeed="3.0"
         fovfriction="0.9"
         zoomtocursor="false"
         zoomoutcursor="true"
         touchzoom="true"
         keycodesleft="37"
         keycodesright="39"
         keycodesup="38"
         keycodesdown="40"
         keycodesin=""
         keycodesout=""
         keydownrepeat="true"
         bouncinglimits="false"
         />
Attribute nameFull variable nameTypeDefault value
usercontrol control.usercontrol String all
User controls for changing the pano view:
  • all - all controls - mouse, touch and keyboard.
  • mouse - mouse and touch controls only (no keyboard).
  • keyb - keyboard control only (no mouse/touch).
  • off - no user control.
Attribute nameFull variable nameTypeDefault value
mouse
touch
control.mouse
control.touch
String
String
drag
drag
Set the control mode for the mouse and touch usage.

Available settings:
  • drag - drag the pano image.
  • moveto - move the pano image.
  • drag3d - free-axis 3d dragging (Flash only).
Attribute nameFull variable nameTypeDefault value
dragrelative control.dragrelative Boolean true
  • true - When enabled (the default) a 'relative' mapping between the drag control input and the pano view movement will be used. This is less accurate but gives a better control feeling at larger field-of-views and when using fisheye distortions.
  • false - When disabled an 'absolute' mapping between the drag control input and the pano view movement will be used. That means when dragging point A in the pano image to point B. the view will exactly follow that movement.
At smaller field-of-views (when zoomed in) both modes will be near the same.
Attribute nameFull variable nameTypeDefault value
draginertia control.draginertia Number 0.1
The inertia of the dragging control. The higher the value, the fewer the momentum of the view rotation when releasing the control.
Attribute nameFull variable nameTypeDefault value
dragfriction control.dragfriction Number 0.9
The friction of the view rotation momentum of the dragging control mode. The lower the value, the quicker the movement will stop.
Attribute nameFull variable name (HTML5 only)TypeDefault value
drag_oldmode control.drag_oldmode Boolean false
In version 1.19 the behavior of the dragging control was slightly changed. Due these changes the speed and momentum is slightly different. By enabling this setting the old mode can be used.
Attribute nameFull variable nameTypeDefault value
movetorelative control.movetorelative Boolean true
  • true - When enabled (the default) a 'relative' mapping between the moveto control input and the pano view movement will be used. This is less accurate but gives a better control feeling at larger field-of-views and when using fisheye distortions.
  • false - When disabled an 'absolute' mapping between the moveto control input and the pano view movement will be used.
At smaller field-of-views (when zoomed in) both modes will be near the same.
Attribute nameFull variable nameTypeDefault value
movetoaccelerate control.movetoaccelerate Number 1.0
The movement acceleration of the moveto control mode. The higher the value, the quicker the pano will start rotating.
Attribute nameFull variable nameTypeDefault value
movetospeed control.movetospeed Number 10.0
The maximum moving / rotating speed of the moveto control mode.
Attribute nameFull variable nameTypeDefault value
movetofriction control.movetofriction Number 0.8
The friction of the view rotation momentum of the moving control mode. The lower the value, the quicker the movement will stop.
Attribute nameFull variable nameTypeDefault value
movetoyfriction control.movetoyfriction Number 1.0
An additionally friction for the vertical movement in the moveto control mode. Can be used with values lower than 1.0 to make the vertical moving less responsive.
Attribute nameFull variable nameTypeDefault value
keybaccelerate control.keybaccelerate Number 0.5
The acceleration of the keyboard / button controlled moving.
Attribute nameFull variable nameTypeDefault value
keybspeed control.keybspeed Number 10.0
The maximum moving speed of the keyboard / button controlled moving.
Attribute nameFull variable nameTypeDefault value
keybfriction control.keybfriction Number 0.9
The moving friction of the keyboard / button controlled moving.
Attribute nameFull variable nameTypeDefault value
keybinvert control.keybinvert Boolean false
Invert the keyboard / button up and down moves.
Attribute nameFull variable nameTypeDefault value
keybfovchange control.keybfovchange Number 0.75
The keyboard / button fov (zoom) change in degrees (=zoom sensibility).
Attribute nameFull variable nameTypeDefault value
mousefovchange control.mousefovchange Number 1.0
The mouse-wheel fov (zoom) change in degrees (=mouse-wheel zoom sensibility).
Attribute nameFull variable nameTypeDefault value
fovspeed control.fovspeed Number 3.0
The maximum fov change / zooming speed (for mouse-wheel and keyboard / button control).
Attribute nameFull variable nameTypeDefault value
fovfriction control.fovfriction Number 0.9
The friction of fov (zoom) changes.
Attribute nameFull variable nameTypeDefault value
zoomtocursor control.zoomtocursor Boolean false
When enabled and zooming in by the mouse-wheel the pano will zoom toward the position of the mouse cursor.
Attribute nameFull variable nameTypeDefault value
zoomoutcursor control.zoomoutcursor Boolean true
When zoomtocursor and this setting are enabled and zooming out by the mouse-wheel the pano will zoom away from the position of the mouse cursor. Otherwise the pano will zoom away from the center of the screen.
Attribute nameFull variable name (HTML5 only)TypeDefault value
touchzoom control.touchzoom Boolean true
Enable or disable the 2-finger zoom gesture.
Attribute nameFull variable nameTypeDefault value
keycodesleft control.keycodesleft String "37"
Keyboard keycodes for moving left (separated by commas).
Default="37" (arrow left)
Attribute nameFull variable nameTypeDefault value
keycodesright control.keycodesright String "39"
Keyboard keycodes for moving right (separated by commas).
Default="39" (arrow right)
Attribute nameFull variable nameTypeDefault value
keycodesup control.keycodesup String "38"
Keyboard keycodes for moving up (separated by commas).
Default="38" (arrow up)
Attribute nameFull variable nameTypeDefault value
keycodesdown control.keycodesdown String "40"
Keyboard keycodes for moving down (separated by commas).
Default="40" (arrow down)
Attribute nameFull variable nameTypeDefault value
keycodesin control.keycodesin String
Keyboard keycodes for zooming-in (separated by commas).

Example: to allow zooming-in with the Shift-key, the A-key, and the Plus-key:
keycodesin="16,65,107"
Attribute nameFull variable nameTypeDefault value
keycodesout control.keycodesout String
Keyboard keycodes for zooming-out (separated by commas).

Example: to allow zooming-out with the CTRL-key, the Y/Z-keys, and the Minus-key:
keycodesout="17,89,90,109"
Attribute nameFull variable nameTypeDefault value
keydownrepeat control.keydownrepeat Boolean true
Enable or disable the auto-repeating of the onkeydown event when a key is hold down. The auto-repeating delay and repeating interval depends on the system keyboard settings.
Attribute nameFull variable name (HTML5 only)TypeDefault value
bouncinglimits control.bouncinglimits Boolean false
Bounce back when hitting the panning or zooming limits (drag control only).
Examples
Use dragging control:
<control mouse="drag" touch="drag" />
Use moving control for mouse and dragging for touch:
<control mouse="moveto" touch="drag" />
Zoom toward the mouse cursor:
<control zoomtocursor="true" />
Allow zooming by keyboard:
<control keycodesin="16,65,107" keycodesout="17,89,90,109" />
<cursors>
Customize the mouse cursor.

HTML5:
By using the standard, dragging and moving settings it's possible to select native system cursors for these states.

Flash:
By using the url setting it's possible to use custom images for the cursor. In this case the url image contains all different mouse states within one image (this reduces the necessary download requests and speeds up loading). The individual images will be selected by defining cropping pixel coordinates for the moving states.


<cursors standard="default"
         dragging="move"
         moving="move"
         url=""
         type="8way"
         move=""
         drag=""
         arrow_l=""
         arrow_r=""
         arrow_u=""
         arrow_d=""
         arrow_lu=""
         arrow_ru=""
         arrow_ld=""
         arrow_rd=""
         />
Attribute nameFull variable nameTypeDefault value
standard
dragging
moving
cursors.standard
cursors.dragging
cursors.moving
String
String
String
default
move
move
Select the native CSS mouse cursor for the current state (HTML5 only).
Attribute nameFull variable nameTypeDefault value
url cursors.url String
Path/url to the cursors images. This image must contain all images for all cursor states. The image for the certain cursor is selected by defining the position and size of a (crop) rectangle.
Attribute nameFull variable nameTypeDefault value
type cursors.type String 8way
drag = move/drag
4way = move/drag/arrow_l/arrow_u,arrow_r,arrow_d
8way = all
Attribute nameFull variable nameTypeDefault value
move
drag
arrow_l
arrow_r
arrow_u
arrow_d
arrow_lu
arrow_ru
arrow_ld
arrow_rd
cursors.move
cursors.drag
cursors.arrow_l
cursors.arrow_r
cursors.arrow_u
cursors.arrow_d
cursors.arrow_lu
cursors.arrow_ru
cursors.arrow_ld
cursors.arrow_rd
String
String
String
String
String
String
String
String
String
String
move = during normal moving (without mouse button down)
drag = mouse button down
arrow_* = mouse button down and moving in direction
<autorotate> show / hide advanced settings
Automatic rotation / moving / zooming when there is no user-interaction.

<autorotate enabled="false"
            waittime="1.5"
            accel="1.0"
            speed="10.0"
            horizon="0.0"
            tofov="off"
            zoomslowdown="true"
            interruptionevents="userviewchange|layers|keyboard"
            />

For getting feedback about autorotation changes, these autorotate events could be used: onautorotatestart, onautorotatestop, onautorotateoneround and onautorotatechange.
Attribute nameFull variable nameTypeDefault value
enabled autorotate.enabled Boolean false
Enable / disable the automatic rotation.
Attribute nameFull variable nameTypeDefault value
waittime autorotate.waittime Number 1.5
The time in seconds to wait after the last user-interaction before starting the automatic rotation.
Attribute nameFull variable nameTypeDefault value
accel autorotate.accel Number 1.0
The rotation acceleration in degrees/second.
Attribute nameFull variable nameTypeDefault value
speed autorotate.speed Number 10.0
The maximum rotation speed in degrees/second.
Use a negative value for a rotation to left.
Attribute nameFull variable nameTypeDefault value
horizon autorotate.horizon Number 0.0
Move / rotate to the given horizon (0.0 = middle of the pano).
Set the value to "off" or any other non-number value to disable it.
Attribute nameFull variable nameTypeDefault value
tofov autorotate.tofov Number NaN
Zoom to the given field of view (fov).
Set it to "off" or any other non-number value to disable it.
Attribute nameFull variable nameTypeDefault value
zoomslowdown autorotate.zoomslowdown Boolean true
Slow down the autorotation speed relative to the current zoom / field-of-view to get the same visual speed at all zoom distances.
Attribute nameFull variable nameTypeDefault value
interruptionevents autorotate.interruptionevents String ...
Define which events will interrupt the autorotation (and also the onidle event).

The interruptionevents setting can be a combination of the following strings (combined by | characters):
  • userviewchange
    • A change of the pano-view by the user via mouse or touch.
  • layers
    • An interaction with layer or hotspot elements.
  • keyboard
    • Any keyboard input.

The default is:
interruptionevents="userviewchange|layers|keyboard"
Full variable name (read only)TypeDefault value
autorotate.isrotating Boolean false
Is the pano currently auto-rotating?
Full variable name (read only)TypeDefault value
autorotate.ispaused Boolean false
Is the auto-rotating currently paused?
Function nameType
autorotate.start()Action
Enable and directly start the autorotation now (without autorotate.waittime).
Function nameType
autorotate.stop()Action
Stop the current autorotation and disable it.
Function nameType
autorotate.interrupt()Action
Stop/interrupt the current autorotation - same as an user interaction interrupt.
The autorotation itself will kept enabled and will start again after waittime seconds without user interaction.
Function nameType
autorotate.pause()Action
Either pause the current autorotation, or when the autorotation is currently not running, then don't start it as long as it is paused.

E.g. could be used when the mouse hovers a hotspot to pause there.
Function nameType
autorotate.resume()Action
Resume a previously paused autorotation.
Examples
Just enable it (using the default settings):
<autorotate enabled="true" />
Enable it and set custom settings (like a rotation to left by a negative speed value):
<autorotate enabled="true"
            waittime="5.0"
            speed="-3.0"
            horizon="0.0"
            tofov="120.0"
            />
Interactively enable or disable the autorotation:
... onclick="switch(autorotate.enabled);"
Enable and instantly start the autorotation:
... onclick="autorotate.start();"
<layer> / <plugin> show / hide advanced settings
The <layer> or <plugin> elements can be used to include images, logos, buttons or dynamic plugins (e.g. krpano plugins). To combine, stack, sublayer several <layer> or <plugin> elements, either the parent setting can be used, or the children <layer> / <plugin> elements can be declared as child xml elements. In this case the parent and keep will be automatically assigned to the parent element.

Note - the <layer> or <plugin> elements are internally exactly the same elements, only with different names! The usage of 'layer' instead of 'plugin' is recommended because it describes the element better. The name 'plugin' is from older krpano versions and only there for backward compatibility.

<plugin name="..."
        type="image"
        url="..."
        keep="false"
        parent=""
        visible="true"
        enabled="true"
        handcursor="true"
        maskchildren="false"
        scalechildren="false"
        zorder=""
        capture="true"
        children="true"
        preload="false"
        blendmode="normal"
        style=""
        align=""
        edge=""
        safearea="true"
        x=""
        y=""
        ox=""
        oy=""
        rotate="0.0"
        width=""
        height=""
        scale="1.0"
        pixelhittest="false"
        smoothing="true"
        accuracy="0"
        alpha="1.0"
        autoalpha="false"
        usecontentsize="false"
        scale9grid=""
        crop=""
        onovercrop=""
        ondowncrop=""
        mask=""
        effect=""
        bgcolor="0x000000"
        bgalpha="0.0"
        bgborder="0"
        bgroundedge="0"
        bgshadow=""
        bgcapture="false"
        onover=""
        onhover=""
        onout=""
        onclick=""
        ondown=""
        onup=""
        onloaded=""
        />
<layer name="..."
       type="image"
       url="..."
       keep="false"
       parent=""
       visible="true"
       enabled="true"
       handcursor="true"
       maskchildren="false"
       scalechildren="false"
       zorder=""
       capture="true"
       children="true"
       preload="false"
       blendmode="normal"
       style=""
       align=""
       edge=""
       safearea="true"
       x=""
       y=""
       ox=""
       oy=""
       rotate="0.0"
       width=""
       height=""
       scale="1.0"
       pixelhittest="false"
       smoothing="true"
       accuracy="0"
       alpha="1.0"
       autoalpha="false"
       usecontentsize="false"
       scale9grid=""
       crop=""
       onovercrop=""
       ondowncrop=""
       mask=""
       effect=""
       bgcolor="0x000000"
       bgalpha="0.0"
       bgborder="0"
       bgroundedge="0"
       bgshadow=""
       bgcapture="false"
       onover=""
       onhover=""
       onout=""
       onclick=""
       ondown=""
       onup=""
       onloaded=""
       />
Full variable name (read only)TypeDefault value
plugin.countlayer.countint0
The count of all layer / plugin elements.
Full variable nameTypeDefault value
plugin.enabledlayer.enabledBooleantrue
Enable/disable the whole layer / plugin layer for receiving mouse events.
Full variable nameTypeDefault value
plugin.visiblelayer.visibleBooleantrue
Show/hide the whole layer / plugin layer.
Full variable nameTypeDefault value
plugin.alphalayer.alphaNumber1.0
Controls the transparency / alpha of the whole layer / plugin layer.
Full variable name (as3 usage only)TypeDefault value
plugin.layerlayer.layerSprite
Actionscript 3 Sprite object of the layer / plugin layer.
Attribute nameFull variable nameTypeDefault value
nameplugin[name].nameString
namelayer[name].name String
The name of the current layer / plugin element (see the name notes).
Attribute nameFull variable name (read only)TypeDefault value
indexindexplugin[name].indexlayer[name].indexint
The index of the current layer / plugin element.
Attribute nameFull variable nameTypeDefault value
typeplugin[name].typeString"image"
typelayer[name].type String"image"
Type of the layer / plugin element.

Possible settings:
  • image
    • The default - uses the url file as image.
  • container
  • text
Attribute nameFull variable nameTypeDefault value
urlplugin[name].urlString
urllayer[name].urlString
The path/url to the layer / plugin image file. (see also the url notes)
Supported file types: JPG, PNG, GIF and SWF (Flash-only).

To define different urls for Flash and HTML, the xml device checks should be used:
url.flash="plugin.swf
url.html5="plugin.js
Attribute nameFull variable nameTypeDefault value
keepplugin[name].keepBooleanfalse
keeplayer[name].keepBooleanfalse
Should this layer / plugin element be kept or removed when loading a new pano.
See also the loadpano() action.
Attribute nameFull variable nameTypeDefault value
visibleplugin[name].visibleBooleantrue
visiblelayer[name].visibleBooleantrue
Visibility of the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
enabledplugin[name].enabledBooleantrue
enabledlayer[name].enabledBooleantrue
Enables the layer / plugin element to receive mouse events. When set to "false" then the mouse events will be routed to the underlying elements.
Attribute nameFull variable nameTypeDefault value
handcursorplugin[name].handcursorBooleantrue
handcursorlayer[name].handcursorBooleantrue
Show a hand cursor when mouse is over the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
maskchildrenplugin[name].maskchildrenBooleanfalse
maskchildrenlayer[name].maskchildrenBooleanfalse
When set to true then all children elements that are outside of the parent element will be clipped / masked out.

HTML5 Safari / iOS notes - the when using maskchildren=true on a container element that has rounded edges and shadows (by using the bgroundedge and bgshadow settings) then the children elements will be not clipped on the rounded edges. This is a bug of the Safari browser (Desktop and iOS), all other browsers are fine.
Attribute nameFull variable nameTypeDefault value
zorderplugin[name].zorderString
zorderlayer[name].zorderString
Deep / 'Z' ordering of the layer / plugin elements.
This value can be any string or number. All layer / plugin elements with a zorder setting will be sorted by the given value. When nothing is set - then the order is undefined and depends on the loading/finishing order of the browser.

Note - this is an important setting for overlapping elements!
HTML5 Notes - the zorder should be a value between 0 and 100, no negative values!
Attribute nameFull variable nameTypeDefault value
capturecapturelayer[name].captureplugin[name].captureBooleantrue
This is an additional setting to the enabled setting:
When enabled=true and capture=true then the mouse events will be only sent to this layer / plugin, no movement / controlling of the pano is possible.
When enabled=true and capture=false then the mouse events will be sent to the layer / plugin and also to all underlying elements, controlling the pano will be still possible.
Attribute nameFull variable nameTypeDefault value
childrenchildrenlayer[name].childrenplugin[name].childrenBooleantrue
Enables the children elements of the current layer / plugin element for receiving mouse events.
Attribute nameFull variable nameTypeDefault value
preloadpreloadlayer[name].preloadplugin[name].preloadBooleanfalse
Preload the layer / plugin url before loading the pano and before executing any actions. This can be used to force some element to be there and ready before everything else starts.

Note - the onloaded event doesn't work / can't be used when preloading is enabled!
Attribute nameFull variable name (Flash only)TypeDefault value
blendmodeblendmodelayer[name].blendmodeplugin[name].blendmodeString"normal"
Blending / mixing mode - possible settings: normal, layer, screen, add, subtract, difference, multiply, overlay, lighten, darken, hardlight, invert.

See here for more details about all available blending modes:
http://help.adobe.com/.../BlendMode.html
And here for some illustrations / examples:
http://help.adobe.com/.../DisplayObject.html#blendMode
Attribute nameFull variable nameTypeDefault value
styleplugin[name].styleString
stylelayer[name].styleString
Load the attributes from one or more <style> elements.
This can be used to reduce the xml code - the attributes that are the same for more layer / plugin or hotspot elements can be stored together at one place in a <style> element. To specify more than one style, separate the style names by pipe | characters.

Note - the attributes that were defined in a style can NOT be overwritten in the layer / plugin / hotspots definition!

Example:
<style name="style1" alpha="0.5" scale="0.5" ... />
<plugin name="p1" ... style="style1" /> <plugin name="p2" ... style="style1" /> <hotspot name="h1" ... style="style1" />

A style can be also loaded dynamically by the loadstyle(name) action.
Attribute nameFull variable nameTypeDefault value
alignplugin[name].alignString
alignlayer[name].alignString
Alignment / origin-point position of the layer / plugin element on the screen.
Possible values: lefttop, left, leftbottom, top, center, bottom, righttop, right, rightbottom - or - no value (empty or null)

When NOT set (the default) no positioning will be done by krpano (useful / necessary for some flash/swf plugins).
Attribute nameFull variable nameTypeDefault value
edgeplugin[name].edgeString
edgelayer[name].edgeString
Edge / anchor-point of the layer / plugin element.
Possible values: lefttop, left, leftbottom, top, center, bottom, righttop, right, rightbottom - or - no value (empty or null)

When NOT set (the default) the same setting as in the align attribute will be used.
Attribute nameFull variable nameTypeDefault value
safeareaplugin[name].safeareaBooleantrue
safearealayer[name].safeareaBooleantrue
Should the layer be relative to the safe-area of the display or to the full-display-area.
Attribute nameFull variable nameTypeDefault value
x
y
plugin[name].x
plugin[name].y
String
String
x
y
layer[name].x
layer[name].y
String
String
Distance from the align point to the edge point.
This can be a absolute pixel value or a relative (to the screenwidth or screenheight) percent value.

Note - for right/bottom aligned elements this distance will be measured from the right/bottom side.
Attribute nameFull variable nameTypeDefault value
ox
oy
ox
oy
layer[name].ox
layer[name].oy
plugin[name].ox
plugin[name].oy
String
String
Offset / parallel-shift of the layer / plugin element. This values will be added to the x/y values.
This can be a absolute pixel value or a relative (to layer / plugin size) percent value.
Attribute nameFull variable nameTypeDefault value
rotateplugin[name].rotateNumber0.0
rotatelayer[name].rotateNumber0.0
Rotation of the layer / plugin element in degrees.
Attribute nameFull variable nameTypeDefault value
width
height
plugin[name].width
plugin[name].height
String
String
width
height
layer[name].width
layer[name].height
String
String
Destination size of the layer / plugin element - the image will be scaled to that size.

This can be a absolute pixel value or a relative (to the screenwidth or screenheight) percent value. When not set - the size of the loaded image will be used.

Negative values - when using negative values as size, then the resulting size will be the size of the parent element (or the size of the stage when there is no parent) minus the given negative value.

Additionally it's possible to use the special value "prop" to scale an image via width or height by keeping it proportions (e.g. set width or height to a value and the other setting to "prop" - width="500" height="prop").
Attribute nameFull variable nameTypeDefault value
minwidth
maxwidth
minheight
maxheight
minwidth
maxwidth
minheight
maxheight
layer[name].minwidth
layer[name].maxwidth
layer[name].minheight
layer[name].maxheight
plugin[name].minwidth
plugin[name].maxwidth
plugin[name].minheight
plugin[name].maxheight
int
int
int
int
0
0
0
0
Limit the resulting layer size.

Only absolute pixel values are possible for these settings. When the value for a min/max setting is 0, it will be disabled/ignored. Dynamic changes of these settings will not trigger an instant update of the layer element.
Attribute nameFull variable name (read only)TypeDefault value
imagewidth
imageheight
imagewidth
imageheight
layer[name].imagewidth
layer[name].imageheight
plugin[name].imagewidth
plugin[name].imageheight
int
int
These variables contain the original unscaled pixel size of the loaded image, this information are first available after the onloaded event.
Attribute nameFull variable name (read only)TypeDefault value
pixelwidth
pixelheight
pixelwidth
pixelheight
layer[name].pixelwidth
layer[name].pixelheight
plugin[name].pixelwidth
plugin[name].pixelheight
int
int
These variables contain the final pixel size of the element, but note - they don't get updated immediately when changing the normal width/height/scale variables, the update happens after a screen refresh or when calling the updatepos() action.
Attribute nameFull variable name (read only)TypeDefault value
pixelx
pixely
pixelx
pixely
layer[name].pixelx
layer[name].pixely
plugin[name].pixelx
plugin[name].pixely
int
int
These variables contain the final pixel position of the element, but note - they don't get updated immediately when changing the align/edge/x/y/ox/oy variables, the update happens after a screen refresh or when calling the updatepos() action.

Note - the values can differ between Flash and HTML5 when layering or scaling is involved due different technical implementations.
Attribute nameFull variable nameTypeDefault value
scaleplugin[name].scaleNumber1.0
scalelayer[name].scaleNumber1.0
Scaling of the layer / plugin element.
Attribute nameFull variable name (Flash only)TypeDefault value
pixelhittestpixelhittestlayer[name].pixelhittestplugin[name].pixelhittestBooleanfalse
Enabling a pixel accurate hit testing which respects the transparency of the image instead of using the bounding box (Flash only).

Note - use this setting with care! The pixel accurate hit-test is a much heavier operation than the normal default bounding box check!
Attribute nameFull variable name (Flash only)TypeDefault value
smoothingsmoothinglayer[name].smoothingplugin[name].smoothingBooleantrue
Pixel smoothing when scaling.
Attribute nameFull variable nameTypeDefault value
accuracyaccuracylayer[name].accuracyplugin[name].accuracyint0
Accuracy of the layer / plugin image positioning:
When set to 0 (the default) the pixel positions will be rounded to full pixel values. When set to 1 no rounding of the position values will be done, but then the image can become blurry due this.

Note - if accuracy=1 would work depends also on the Flashplayer display quality settings and if the browser is supporting sub-pixel-precise CSS coordinates.
Attribute nameFull variable nameTypeDefault value
alphaplugin[name].alphaNumber1.0
alphalayer[name].alphaNumber1.0
Alpha value / transparency of the layer / plugin element.
0.0 = fully transparent, 1.0 = fully visible

Note - even when set to 0.0 - the element will be still there and click-able - to hide it completely the visible attribute must be set to false!
Attribute nameFull variable nameTypeDefault value
autoalphaautoalphalayer[name].autoalphaplugin[name].autoalphaBooleanfalse
When set to "true", then visible will be automatically set to "false" when alpha is 0.0 and back to "true" when alpha is bigger then 0.0.
Attribute nameFull variable name (Flash only)TypeDefault value
usecontentsizeusecontentsizelayer[name].usecontentsizeplugin[name].usecontentsizeBooleanfalse
When a .swf file will be loaded, then are two possibilities to determinate its size / dimension - either the size of full canvas of the flash object will be used (usecontentsize=false, the default) - or - only the size of the drawn content there (usecontentsize=true).
Attribute nameFull variable nameTypeDefault value
scale9gridscale9gridlayer[name].scale9gridplugin[name].scale9gridString
Defines a grid in pixel coordinates that splits the layer / plugin image into 9 segments. And when scaling the layer / plugin via the width / height / scale values, the 'edge' segments will be kept unscaled and only the 'middle' segments will be scaled.

When using scale9grid, then scalechildren always will be false.

Syntax:
scale9grid="x-position|y-position|width|height|prescale*"
  • x/y-position - the start x/y pixel-position of the inner-box
  • width/height - the pixel-size of the inner-box
  • prescale - an optional scaling setting to pre-scale the base-image itself
Attribute nameFull variable nameTypeDefault value
crop
onovercrop
ondowncrop
plugin[name].crop
plugin[name].onovercrop
plugin[name].ondowncrop
String
String
String
crop
onovercrop
ondowncrop
layer[name].crop
layer[name].onovercrop
layer[name].ondowncrop
String
String
String
Crop / cut out a rectangular area of the source image. Usefull to use only one single image for serval image elements.
onovercrop / ondowncrop - different crop areas for mouse over and mouse button down states.

Syntax:
crop="x-position|y-position|width|height"
Attribute nameFull variable nameTypeDefault value
parentplugin[name].parentString
parentlayer[name].parentString
Assign the current layer / plugin to be a child element of an other layer / plugin or hotspot element. The assigned layer / plugin will be aligned inside the parent element.

There are two special predefined parent elements:
  • STAGE - this parent allows to align a layer / plugin OUTSIDE the pano area.
  • BGLAYER - this parent allows to align a layer / plugin BEHIND the pano.
    (e.g. for partial panos)

Syntax:
Either use only the name of the parent layer / plugin:
parent="name"
Or the full path/name of the layer / plugin or hotspot that should be the parent element:
parent="layer[name]"
parent="hotspot[name]"
Or to align the layer / plugin element on the outside or behind the pano area:
parent="STAGE"
parent="BGLAYER"

Note - distorted hotspots can't be used as parent at the moment!
Attribute nameFull variable nameTypeDefault value
scalechildrenplugin[name].scalechildrenBooleanfalse
scalechildrenlayer[name].scalechildrenBooleanfalse
Should a child layer / plugin element, that have been assigned by parent also be scaled when the current layer / plugin element will scaled.
Attribute nameFull variable name (Flash only)TypeDefault value
maskmasklayer[name].maskplugin[name].maskString
Use an other layer / plugin or hotspot image as mask. The image should have an alpha channel (e.g. use a .png image for it). Without alpha channel the bounding box area of the layer / plugin will be used as mask.

Syntax:
Either use only the name of a other layer / plugin:
mask="name"
Or the full path/name of the layer / plugin or hotspot that should be used as mask:
mask="layer[name]"
mask="hotspot[name]"

Note - for rendering performance reasons the mask shouldn't not be used with distorted hotspots!

HTML5 Notes - for masking children elements that works the same in Flash and HTML5 use the newer maskchildren setting.
Attribute nameFull variable name (Flash only)TypeDefault value
effecteffectlayer[name].effectplugin[name].effectString
Apply bitmap effects to the layer / plugin image.
That can be any combinations of these effect functions:
glow(color,alpha,range,strength);
dropshadow(depth,angle,color,range,strength);
blur(radius);
Attribute nameFull variable nameTypeDefault value
bgcolorplugin[name].bgcolorint0x000000
bgcolorlayer[name].bgcolorint0x000000
Background color of the container element (only available when type=container).
Attribute nameFull variable nameTypeDefault value
bgalphaplugin[name].bgalphaNumber0.0
bgalphalayer[name].bgalphaNumber0.0
Transparency / alpha of the background color of the container element (only available when type=container).
Attribute nameFull variable nameTypeDefault value
bgborderplugin[name].bgborderString"0"
bgborderlayer[name].bgborderString"0"
Add borders around the type=container layer element.

Syntax:
bgborder="widths color alpha"

Parameters:
  • widths
    The border line-widths. This can be either just one size value for all sides or a comma separated list of values to define different widths for each side.
    There are four way to set the widths:
    • 1 value ⇒ use the same width for all sides.
    • 2 values: 1,2 ⇒ 1=Top&Bottom, 2=Left&Right width.
    • 3 values: 1,2,3 ⇒ 1=Top, 2=Left&Right, 3=Bottom width.
    • 4 values: 1,2,3,4 ⇒ 1=Top, 2=Right, 3=Bottom, 4=Left width.
  • color (optionally)
    The color of the border lines. The default is 0x000000 (black).
  • alpha (optionally)
    Transparency / alpha of the border lines (0.0 to 1.0, default=1.0).
Attribute nameFull variable nameTypeDefault value
bgroundedgeplugin[name].bgroundedgeString"0"
bgroundedgelayer[name].bgroundedgeString"0"
Define rounded edges of the container background color shape.
A value sets the edge rounding radius in pixels.

Four values can be set, one for each edge (separated by space characters). They are given in the order: top-left, top-right, bottom-right, bottom-left. If bottom-left is omitted, it is the same as top-right. If bottom-right is omitted, it is the same as top-left. If top-right is omitted, it is the same as top-left.
Attribute nameFull variable nameTypeDefault value
bgshadowplugin[name].bgshadowString
bgshadowlayer[name].bgshadowString
Add a shadow behind the type=container layer element.

Basic Syntax (5 parameters, supported by Flash and HTML5):
bgshadow="xoffset yoffset blur color alpha"

Advanced Syntax (6 or more parameters, supported only by HTML5):
bgshadow="xoffset yoffset blur spread color alpha inset, ..."

Parameters:
  • xoffset, yoffset
    The offset / distance of the shadow in pixels.
  • blur
    The blur radius / range in pixels - defines how strong the shadow will be blurred.
    0 = no blur ⇒ sharp edges.
  • spread (Advanced Syntax, HTML5 only)
    Spreading of the shadow in pixels - expand (positive values) or shrink (negative values) the shadow.
  • color
    The color of the shadow.
  • alpha
    The alpha / transparency of the shadow.
  • inset (Advanced Syntax, HTML5 only, optionally)
    When the text "inset" will be added as last parameter, then the shadow will be an inner shadow instead of an outer shadow.
  • ... (Advanced Syntax, HTML5 only, optionally)
    Add another shadow (comma separated).
Attribute nameFull variable nameTypeDefault value
bgcaptureplugin[name].bgcaptureBooleanfalse
bgcapturelayer[name].bgcaptureBooleanfalse
Capture mouse events on the background of the container element (only available when type=container and bgalpha > 0.0).
Attribute nameFull variable name (read only)TypeDefault value
loadingloadinglayer[name].loadingplugin[name].loadingBooleanfalse
A boolean read-only variable that indicates that the layer / plugin is currently loading an image.
Attribute nameFull variable name (read only)TypeDefault value
loadedloadedlayer[name].loadedplugin[name].loadedBooleanfalse
A boolean read-only variable that indicates that the layer / plugin has loaded the given image.
Attribute nameFull variable name (read only)TypeDefault value
loadedurlloadedurllayer[name].loadedurlplugin[name].loadedurlString
The loadedurl attribute contains the full url of the currently loaded image.
Attribute nameFull variable name (read only)TypeDefault value
hoveringhoveringlayer[name].hoveringplugin[name].hoveringBooleanfalse
A boolean read-only variable that indicates that the mouse cursor it currently over the layer / plugin.
Attribute nameFull variable name (read only)TypeDefault value
pressedpressedlayer[name].pressedplugin[name].pressedBooleanfalse
A boolean read-only variable that indicates that the mouse button was pressed on the layer / plugin and is still hold down.
Attribute nameFull variable nameTypeDefault value
onoverplugin[name].onoverAction Event
onoverlayer[name].onoverAction Event
Actions / functions that will be called when the mouse moves over the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
onhoverplugin[name].onhoverAction Event
onhoverlayer[name].onhoverAction Event
Actions / functions that will be called in intervals (15 times per second) when the mouse stays over / hovers the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
onoutplugin[name].onoutAction Event
onoutlayer[name].onoutAction Event
Actions / functions that will be called when the mouse moves out of the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
onclickplugin[name].onclickAction Event
onclicklayer[name].onclickAction Event
Actions / functions that will be called when there is a mouse click on the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
ondownplugin[name].ondownAction Event
ondownlayer[name].ondownAction Event
Actions / functions that will be called when the mouse button will be pressed down on the layer / plugin element.
Attribute nameFull variable nameTypeDefault value
onupplugin[name].onupAction Event
onuplayer[name].onupAction Event
Actions / functions that will be called when the previously pressed mouse button will be released.
Attribute nameFull variable nameTypeDefault value
onloadedplugin[name].onloadedAction Event
onloadedlayer[name].onloadedAction Event
Actions / functions that will be called when the loading of the layer / plugin image is done.
Attribute nameFull variable nameTypeDefault value
loaderloaderlayer[name].loaderplugin[name].loader
Flash: Actionscript 3 Loader object of the loaded layer / plugin image.
HTML5: HTML Image element.
Attribute nameFull variable nameTypeDefault value
spritespritelayer[name].spriteplugin[name].sprite
Flash: Actionscript 3 Sprite object of the layer / plugin element.
HTML5: HTML DOM element (div) of the layer / plugin element.
Function nameType
layer[name].loadstyle(name)plugin[name].loadstyle(name)Action
An action of the layer / plugin element to load settings from a <style> element.
Function nameType
layer[name].registercontentsize(width,height)plugin[name].registercontentsize(width,height)Action
The registercontentsize action can be used to set / register the 'original / source / unscaled' size of the layer / plugin element. By default the imagesize or the size of the swf file will be used - this source size can be changed here.
For HTML5 / Javascript Plugins that want to draw custom stuff this function call is necessary to set the source size because Javascript Plugins don't have any information about its size.
Function nameType
layer[name].resetsize()plugin[name].resetsize()Action
An action to set the width and height values back to the source size of the loaded image. This can be used after changing the url value to get the size of the new loaded image.
Function nameType
layer[name].updatepos()plugin[name].updatepos()Action
Updates / recalculates the position and size of the layer / plugin immediately (normally this will be done automatically with the next screen refresh). After calling this actions the pixelwidth and pixelheight variables will contain the final pixel sizes of the layer / plugin element.
Function nameType
layer[name].changeorigin(align,edge)plugin[name].changeorigin(align,edge)Action
An action to change the alignment and edge of a layer / plugin element without changing its current position. The x/y values will be recalculated to keep the current position.
Function name (plugininterface only)Typereturn
layer[name].getfullpath()plugin[name].getfullpath()ActionString
A function that returns the full path/name of the layer / plugin element. Because of the return value this action is only callable from the plugin interface.


Illustration of the relations of "align", "edge", "x", "y", "width", "height":
Examples
A simple logo which opens an url on clicking:
<layer name="logo"
       url="logoimage.png"
       align="rightbottom" x="20" y="20"
       onclick="openurl('http://...');"
       />
A container layer with three image layers inside it:
<layer name="imagebar" type="container" width="100%" height="200" align="leftbottom" bgcolor="0x000000" bgalpha="0.5">
  <layer name="item1" url="image1.jpg" align="left" x="10" />
  <layer name="item2" url="image2.jpg" align="left" x="110" />
  <layer name="item3" url="image3.jpg" align="left" x="210" />
</layer>
<hotspot>
Hotspots are areas in the panorama, which react on mouse hovering or clicking. They can be used to load other panoramas, links to other urls, change the viewing ...

There are currently 2 types of Hotspots:
  • Polygonal Hotspots
    these are areas which are defined by a set of points
  • Image Hotspots
    these are images or flash movies as hotspots
The type of the hotspots is defined by their attributes:
- if the "url" attribute is set it is a image hotspot
- if not and there are points defined it is a polygonal hotspot

show / hide advanced settings

image hotspot structure polygonal hotspot structure
<hotspot name="..."
         type="image"
         url="..."
         keep="false"
         renderer="webgl"
         visible="true"
         enabled="true"
         handcursor="true"
         maskchildren="false"
         zorder=""
         zorder2="0.0"
         capture="true"
         children="true"
         blendmode="normal"
         mipmapping="false"
         premultiplyalpha="false"
         style=""
         ath="0.0" atv="0.0"
         edge="center"
         ox="0"
         oy="0"
         zoom="false"
         distorted="false" rx="0.0" ry="0.0" rz="0.0"
         depth="1000"
         tx="0.0" ty="0.0" tz="0.0"
         details="8"
         inverserotation="false"
         flying="0.0"
         scaleflying="true"
         width="" height=""
         scale="1.0"
         rotate="0.0"
         pixelhittest="false"
         accuracy="1"
         alpha="1.0"
         autoalpha="false"
         usecontentsize="false"
         scale9grid=""
         stereo=""
         crop=""
         onovercrop=""
         ondowncrop=""
         scalechildren="false"
         onover=""
         onhover=""
         onout=""
         ondown=""
         onup=""
         onclick=""
         onloaded=""
         />
<hotspot name="..."
         keep="false"
         visible="true"
         enabled="true"
         handcursor="true"
         capture="true"
         blendmode="normal"
         style=""
         alpha="1.0"
         autoalpha="false"
         fillcolor="0xAAAAAA"
         fillalpha="0.5"
         borderwidth="3.0"
         bordercolor="0xAAAAAA"
         borderalpha="1.0"
         polyline="false"
         onover=""
         onhover=""
         onout=""
         ondown=""
         onup=""
         onclick=""
         onloaded=""
>
    <point ath="..." atv="..." />
    <point ath="..." atv="..." />
    <point ath="..." atv="..." />
    ...
</hotspot>
Full variable name (read only)TypeDefault value
hotspot.count int 0
The count / number of all hotspot elements.
Full variable nameTypeDefault value
hotspot.enabled Boolean true
Enable/disable the whole hotspots layer for receiving mouse events.
Full variable nameTypeDefault value
hotspot.visible Boolean true
Show/hide the whole hotspots layer.
Full variable nameTypeDefault value
hotspot.alpha Number 1.0
Controls the transparency / alpha of the whole hotspots layer.
Full variable name (as3 usage only)TypeDefault value
hotspot.layer Sprite
Actionscript 3 Sprite object of the hotspots layer.
Attribute nameFull variable nameTypeDefault value
name hotspot[name].name String
The name of the current hotspot element (see the name notes).
Attribute nameFull variable name (read only)TypeDefault value
index hotspot[name].index int
The index of the current hotspot element.
Attribute nameFull variable nameTypeDefault value
type hotspot[name].type String "image"
Type of the hotspot element.

Possible settings:
  • image
    • The default - uses the url file as image.
  • text
Attribute nameFull variable nameTypeDefault value
url hotspot[name].url String
The path/url to the hotspot image file. (see also the url notes)
Supported file types: JPG, PNG, GIF and SWF (Flash-only).

Note - when "url" will be set, then the hotspot will be an image hotspot and not a polygonal hotspot!

To define different urls for Flash and HTML, the xml device checks should be used:
url.flash="animatedhotspot.swf
Attribute nameFull variable nameTypeDefault value
keep hotspot[name].keep Boolean false
Should this hotspot element be kept or removed when loading a new pano.
See also the loadpano() action.
Attribute nameFull variable nameTypeDefault value
renderer hotspot[name].renderer String
Select the renderer for displaying the hotspot.

Possible settings:
  • webgl - render the hotspot with WebGL
  • css3d - render the hotspot with CSS-3D-transforms

The default setting depends on the browser-support. When WebGL is available, it will be used by default, otherwise CSS3D.
Attribute nameFull variable nameTypeDefault value
visible hotspot[name].visible Boolean true
Visibility of the hotspot element.
Attribute nameFull variable nameTypeDefault value
enabled hotspot[name].enabled Boolean true
Enables the hotspot element to receive mouse events. When set to "false" then the mouse events will be routed to the underlying elements.
Attribute nameFull variable nameTypeDefault value
handcursor hotspot[name].handcursor Boolean true
Show a hand cursor when mouse is over the hotspot element.
Attribute nameFull variable nameTypeDefault value
maskchildren hotspot[name].maskchildren Boolean false
When set to true then all child elements that are outside of the parent element will be clipped / masked out.
Attribute nameFull variable nameTypeDefault value
zorder hotspot[name].zorder String
Deep / "Z" ordering of the hotspot elements.
This value can be any string or number. All hotspot elements with a zorder setting will be sorted by the given value. When nothing is set - then the order is undefined and depends on the loading/finishing order of the browser.

Note - this is an important setting for overlapping elements!
HTML5 Note - the zorder should be a value between 0 and 100, no negative values!
Attribute nameFull variable name (HTML5 only)TypeDefault value
zorder2 hotspot[name].zorder2 Number 0.0
The zorder2 setting is for ordering normal and distorted hotspots in the HTML5 viewer. Due browser/css related limitations it is not always possible to mix / order normal hotspots and distorted hotspots withhin the same layer. But by using the new zorder2 setting, it is possible to define if a normal, non-distorted hotspot should be above or below the other distorted hotspots.
Usage:
  • zorder2=0.0 - The current hotspot is below distorted hotspots (default).
  • zorder2=1.0 - The current hotspot is above distorted hotspots.
Attribute nameFull variable nameTypeDefault value
capture hotspot[name].capture Boolean true
This is an additional setting to the enabled setting:
When enabled=true and capture=true then the mouse events will be only sent to this hotspot, no movement / controlling of the pano is possible.
When enabled=true and capture=false then the mouse events will be sent to the hotspot and also to all underlying elements, controlling the pano will be still possible.
Attribute nameFull variable nameTypeDefault value
children hotspot[name].children Boolean true
Enables the children elements of the current hotspot element for receiving mouse events.
Attribute nameFull variable nameTypeDefault value
blendmode hotspot[name].blendmode String "normal"
Blending / mixing mode.

Supported settings in Flash:
normal, layer, screen, add, subtract, difference, multiply, overlay, lighten, darken, hardlight, invert.

Supported settings in HTML5 with WebGL rendering:
normal, add.

See here for more details about all available blending modes:
http://help.adobe.com/.../BlendMode.html
And here for some illustrations / examples:
http://help.adobe.com/.../DisplayObject.html#blendMode
Attribute nameFull variable name (HTML5 only)TypeDefault value
mipmapping hotspot[name].mipmapping Boolean false
Should the hotspot image get mip-mapped during rendering (e.g. to avoid aliasing when scaled down).

When enabled, this works only when the pixel-sizes (width and height) of the hotspot image are power-of-two sizes.

Only available for WebGL rendering.
Attribute nameFull variable name (HTML5 only)TypeDefault value
premultiplyalpha hotspot[name].premultiplyalpha Boolean false
Multiply the alpha channel of the hotspot image into the color channels.
Will be mapped to the WebGL UNPACK_PREMULTIPLY_ALPHA_WEBGL setting.

Only available for WebGL rendering.
Attribute nameFull variable nameTypeDefault value
style hotspot[name].style String
Load the attributes from one or more <style> elements.
This can be used to reduce the xml code - the attributes that are the same for more layer / plugin or hotspot elements can be stored together at one place in a <style> element. To specify more than one style, separate the style names by pipe | characters.

Note - the attributes that were defined in a style can NOT be overwritten in the layer / plugin / hotspots definition!

Example:
<style name="style1" alpha="0.5" scale="0.5" ... />
<plugin name="p1" ... style="style1" /> <plugin name="p2" ... style="style1" /> <hotspot name="h1" ... style="style1" />

A style can be also loaded dynamically by the loadstyle(name) action.
Attribute nameFull variable nameTypeDefault value
ath
atv
hotspot[name].ath
hotspot[name].atv
Number
Number
0.0
0.0
The spherical coordinates of the hotspot in degrees. There the hotspot image will be aligned by the in the edge setting defined point.
Attribute nameFull variable nameTypeDefault value
edge hotspot[name].edge String "center"
Edge / anchor-point of the hotspot element.
Possible values: lefttop, left, leftbottom, top, center, bottom, righttop, right, rightbottom
Attribute nameFull variable nameTypeDefault value
ox
oy
hotspot[name].ox
hotspot[name].oy
String
String
Offset / parallel-shift of the hotspot element from the edge point.
This can be a absolute pixel value or a relative (to hotspot size) percent value.
Attribute nameFull variable nameTypeDefault value
zoom hotspot[name].zoom Boolean false
Should the size of the hotspot image change together with the pano when zooming.
Attribute nameFull variable nameTypeDefault value
distorted hotspot[name].distorted Boolean false
Should the hotspot image be distorted in the 3D space together with the current pano/viewing distortion. When distorted use rx / ry / rz settings to rotate the hotspot in 3D space.

Note 1 - When enabled, a size of 1000 pixels will be used as reference for pixel sizes. And this 1000 pixels are covering a field of view of 90 degrees in 3D space.

Note 2 - Distorted hotspots can't and shouldn't have children elements. They will be probably not displayed correctly.

Note 3 - Displaying Flash plugins as distorted hotspots should be possible but not the direct interaction with them. In this case the plugin will not display directly, only a kind of 'screenshot'-image of it.

Note 4 - In HTML5 the sorting of normal and distorted hotspots via zorder is not possible, the zorder2 setting can be used additionally for normal hotspots to move them above the distorted hotspots.
Attribute nameFull variable nameTypeDefault value
rx
ry
rz
hotspot[name].rx
hotspot[name].ry
hotspot[name].rz
Number
Number
Number
0.0
0.0
0.0
3D Rotation in degrees over the X / Y / Z axes. (axis order: Y-X-Z)
Note - can only be used when distorted="true"!
Attribute nameFull variable name (HTML5 only)TypeDefault value
depth hotspot[name].depth Number 1000.0
The internal 3D rendering depth - that's the distance of the 3D object to the screen.

For 2D viewing this has no visible effect, but for stereo 3D/VR viewing this can be important setting. E.g. use smaller values for a stronger 'pop-out' effect.

When a hotspot image should be infinity far away (like the pano image itself, e.g. to pixel-perfectly match the pano-background) then an 'invalid' value (e.g. a String like "off") should be used for the depth setting - e.g. depth="off".
Attribute nameFull variable name (HTML5 only)TypeDefault value
tx
ty
tz
hotspot[name].tx
hotspot[name].ty
hotspot[name].tz
Number
Number
Number
0.0
0.0
0.0
3D translation offsets (only available for distorted hotspots).

Settings for shifting / translating the hotspots in 3D space.
Attribute nameFull variable name (Flash only)TypeDefault value
details hotspot[name].details int 8
Internal rendering tesslation details, a higher details value will result in a more detailed internal 3D-geometry. When using the Flashplayer 10 and cubical images without any distortion (fisheye, stereographic, ...) then this setting will be ignored, because a tesslation will be no necessary.
Attribute nameFull variable nameTypeDefault value
inverserotation hotspot[name].inverserotation Boolean false
Inverses the rotation and the axis order of the rx / ry / rz settings.
Attribute nameFull variable nameTypeDefault value
flying hotspot[name].flying Number 0.0
This setting interpolates automatically the ath/atv and scale values to the current viewing values. The value range is from 0.0 to 1.0. At 1.0 the hotspot image will be locked always to the middle to screen and it's size will be relative to 1000 pixel in screen height.
Attribute nameFull variable nameTypeDefault value
scaleflying hotspot[name].scaleflying Boolean true
Scale the hotspot from 'pano-space-size' to 'screen-space-size' when flying out.

For VR usage it can be useful to disable that setting, because in VR there is no real 'screen-space'.
Attribute nameFull variable nameTypeDefault value
width
height
hotspot[name].width
hotspot[name].height
String
String
Destination size of the hotspot element - the image will be scaled to that size.

This can be a absolute pixel value or a relative (to the screenwidth or screenheight) percent value. When not set - the size of the loaded image will be used.

Additionally it's possible to use the special value "prop" to scale an image via width or height by keeping it proportions (e.g. set width or height to a value and the other setting to "prop" - width="500" height="prop").

Note - when using distorted hotspots, then the size is relative to an internal base-size where 1000 pixel are covering a 90 degree field of view.
Attribute nameFull variable name (read only)TypeDefault value
imagewidth
imageheight
hotspot[name].imagewidth
hotspot[name].imageheight
int
int
These variables contain the original unscaled pixel size of the loaded image, this information are first available after the onloaded event.
Attribute nameFull variable nameTypeDefault value
scale hotspot[name].scale Number 1.0
Scaling of the hotspot element.
Attribute nameFull variable nameTypeDefault value
rotate hotspot[name].rotate Number 0.0
Rotation of the hotspot element in degrees.

Note - this setting should NOT be used together with distorted="true"!
Attribute nameFull variable name (Flash only)TypeDefault value
pixelhittest hotspot[name].pixelhittest Boolean false
Enabling a pixel accurate hit testing which respects the transparency of the image instead of using the bounding box.

Note - use this setting with care! The pixel accurate hit-test is a much heavier operation than the normal default bounding box check!
Attribute nameFull variable nameTypeDefault value
accuracy hotspot[name].accuracy int 1
Accuracy of the hotspot image positioning:
  • When set to 1 no rounding of the position values will be done.
  • When set to 0 the pixel positions will be rounded to full pixel values.
Note - if accuracy=1 would work depends also on the Flashplayer display quality settings and if the browser is supporting sub-pixel-precise CSS coordinates.
Attribute nameFull variable nameTypeDefault value
alpha hotspot[name].alpha Number 1.0
Alpha value / transparency of the hotspot element.
0.0 = fully transparent, 1.0 = fully visible

Note - even when set to 0.0 - the element will be still there and click-able - to hide it completely the visible attribute must be set to false!
Attribute nameFull variable nameTypeDefault value
autoalpha hotspot[name].autoalpha Boolean false
When set to "true", then visible will be automatically set to "false" when alpha is 0.0 and back to "true" when alpha is bigger then 0.0.
Attribute nameFull variable name (Flash only)TypeDefault value
usecontentsize hotspot[name].usecontentsize Boolean false
When a .swf file will be loaded, then are two possibilities to determinate its size / dimension - either the size of full canvas of the flash object will be used (usecontentsize=false, the default) - or - only the size of the drawn content there (usecontentsize=true).
Attribute nameFull variable nameTypeDefault value
scale9grid hotspot[name].scale9grid String
Defines a grid in pixel coordinates that splits the hotspot image into 9 segments. And when scaling the layer / plugin via the width / height / scale values, the 'edge' segments will be kept unscaled and only the 'middle' segments will be scaled.

When using scale9grid, then scalechildren always will be false.

Syntax:
scale9grid="x-position|y-position|width|height|prescale*"
  • x/y-position - the start x/y pixel-position of the inner-box
  • width/height - the pixel-size of the inner-box
  • prescale - an optional scaling setting to pre-scale the base-image itself
Attribute nameFull variable name (HTML5 only)TypeDefault value
stereo hotspot[name].stereo String
Define if the hotspot image is a stereoscopic image (HTML5 and WebGL only).

Possible settings:
  • no value - not a stereo image (default)
  • SBS - Side-by-Side image (left-half = left-eye image, right-half = right-eye image)
  • TB - Top-Bottom image (top-half = left-eye image, bottom-half = right-eye image)
Attribute nameFull variable nameTypeDefault value
crop
onovercrop
ondowncrop
hotspot[name].crop
hotspot[name].onovercrop
hotspot[name].ondowncrop
String
String
String
Crop / cut out a rectangular area of the source image. Useful to use only one single image for several image elements.
onovercrop / ondowncrop - different crop areas for mouse over and mouse button down states.

Syntax:
crop="x-position|y-position|width|height"
Attribute nameFull variable nameTypeDefault value
scalechildren hotspot[name].scalechildren Boolean false
Should a child layer / plugin element, that have been assigned by parent also be scaled when the current hotspot element will scaled.
Attribute nameFull variable nameTypeDefault value
fillcolor
fillalpha
hotspot[name].fillcolor hotspot[name].fillalpha int
Number
0xAAAAAA
0.5
The fill-color and alpha (transparency) of a polygonal hotspot area.
Attribute nameFull variable nameTypeDefault value
borderwidth
bordercolor
borderalpha
hotspot[name].borderwidth
hotspot[name].bordercolor
hotspot[name].borderalpha
Number
int
Number
3.0
0xAAAAAA
1.0
The width, the color and the alpha (transparency) of a polygonal hotspot border line.
Full variable nameTypeDefault value
hotspot[name].polyline Boolean false
Draw a line-polygon instead a filled-polygon.
The start and end points will not be joined.
Full variable name (read only)TypeDefault value
hotspot[name].point.count int 0
Number of polygon points.
Attribute nameFull variable nameTypeDefault value
point[..].ath
point[..].atv
hotspot[name].point[..].ath
hotspot[name].point[..].atv
Number
Number
The spherical coordinates of the polygonal hotspot points in degrees.
Attribute nameFull variable name (read only)TypeDefault value
loading hotspot[name].loading Boolean false
A boolean read-only variable that indicates that the hotspot is currently loading an image.
Attribute nameFull variable name (read only)TypeDefault value
loaded hotspot[name].loaded Boolean false
A boolean read-only variable that indicates that the hotspot has loaded the given image.
Attribute nameFull variable name (read only)TypeDefault value
loadedurl hotspot[name].loadedurl String
The loadedurl attribute contains the full url of the currently loaded image.
Attribute nameFull variable name (read only)TypeDefault value
hovering hotspot[name].hovering Boolean false
A boolean read-only variable that indicates that the mouse cursor it currently over the hotspot.
Attribute nameFull variable name (read only)TypeDefault value
pressed hotspot[name].pressed Boolean false
A boolean read-only variable that indicates that the mouse button was pressed on the hotspot and is still hold down.
Attribute nameFull variable nameTypeDefault value
onover hotspot[name].onover Action Event
Actions / functions that will be called when the mouse moves over the hotspot element.
Attribute nameFull variable nameTypeDefault value
onhover hotspot[name].onhover Action Event
Actions / functions that will be called in intervals (15 times per second) when the mouse stays over / hovers the hotspot element.
Attribute nameFull variable nameTypeDefault value
onout hotspot[name].onout Action Event
Actions / functions that will be called when the mouse moves out of the hotspot element.
Attribute nameFull variable nameTypeDefault value
ondown hotspot[name].ondown Action Event
Actions / functions that will be called when the mouse button will be pressed down on the hotspot element.
Attribute nameFull variable nameTypeDefault value
onup hotspot[name].onup Action Event
Actions / functions that will be called when the previously pressed mouse button will be released.
Attribute nameFull variable nameTypeDefault value
onclick hotspot[name].onclick Action Event
Actions / functions that will be called when there is a mouse click on the hotspot element.
Attribute nameFull variable nameTypeDefault value
onloaded hotspot[name].onloaded Action Event
Actions / functions that will be called when the loading of the hotspot image is done.
Attribute nameFull variable nameTypeDefault value
loader hotspot[name].loader
  • Flash - The Actionscript 3 Loader object of the loaded hotspot image.
  • HTML5 - The HTML Image element of the loaded image.
Attribute nameFull variable nameTypeDefault value
sprite hotspot[name].sprite
  • Flash - The Actionscript 3 Sprite object of the hotspot.
  • HTML5 - The HTML <div> element of the hotspot element. Note - only available when rendering the hotspot via CSS3D (see the renderer setting)!
Function nameType
hotspot[name].loadstyle(name) Action
An action of the hotspot element to load settings from a <style> element.
Function nameType
hotspot[name].resetsize() Action
An action to set the width and height values back to the source size of the loaded image. This can be used after changing the url value to get the size of the new loaded image.
Function name (plugin usage only)Typereturn
hotspot[name].getfullpath() Action String
A function that returns the full path/name of the hotspot element. Because of the return value this action is only callable from the plugin interface.
Function nameTypereturn
hotspot[name].getcenter(ath,atv) Action Object
This functions saves the center position of the hotspot to the given variables. When the variables don't exist they will be created.

AS3/JS: This function is also callable direct from AS3/JS. In this case it is not nesecery to use the ath/atv parameters, the function directly returns an AS3 Object with the center ath/atv coordinates of the hotspot. This object has x and y attributes, where x=ath and y=atv.
<events>
The krpano events - they can be used to call actions or functions when something particular happens.

There are two types of events:
  • The global krpano events
    These are the events that were defined in <events> elements without a name attribute. There can be always only one global event. When there is another <events> element in the xml with the same events the previously defined events were overwritten.

    Note - when loading an other xml file or another scene, all global events will remain and be unchanged unless they are defined again in the new xml or scene.

  • Independent local krpano events
    When an <events> element in the xml will be defined with a name attribute - then this will be an independent events element.
    It can contain any of the events, but they will not overwrite the global events, they will be called additionally to it.
    These 'named' <events> elements have also a keep attribute (with the default value "false"). That means <events> elements without keep="true" will be automatically removed when an other pano will be loaded.

    Tip - the named events are a good way for plugins or independent / includeable xml code to use the krpano events without interfering with other plugins or other code.

<events onenterfullscreen=""
        onexitfullscreen=""
        onxmlcomplete=""
        onpreviewcomplete=""
        onloadcomplete=""
        onnewpano=""
        onremovepano=""
        onnewscene=""
        onxmlerror=""
        onloaderror=""
        onkeydown=""
        onkeyup=""
        onclick=""
        onsingleclick=""
        ondoubleclick=""
        onmousedown=""
        onmouseup=""
        onmousewheel=""
        oncontextmenu=""
        onidle=""
        onviewchange=""
        onviewchanged=""
        onresize=""
        onautorotatestart=""
        onautorotatestop=""
        onautorotateoneround=""
        onautorotatechange=""
        gyro_onavailable=""
        gyro_onunavailable=""
        gyro_onenable=""
        gyro_ondisable=""
        webvr_onavailable=""
        webvr_onunavailable=""
        webvr_onunknowndevice=""
        webvr_onentervr=""
        webvr_onexitvr=""
        />

Independent local events: (via 'named' events elements)
<events name="..." keep="false"
        ... any events ...
        />
Attribute nameFull variable nameTypeDefault value
name events[...].name String
  • When a name attribute will be defined then this events element will be an independent local events element.
  • Without name attribute the global events were set.
Attribute nameFull variable nameTypeDefault value
keep events[...].keep Boolean false
  • Should this named <events> element be kept or removed when loading a new pano or scene.
  • See also the notes in the loadpano() action.
Attribute nameFull variable nameTypeDefault value
onenterfullscreen events.onenterfullscreen Action Event
  • This event will be called when switching to fullscreen mode.
Attribute nameFull variable nameTypeDefault value
onexitfullscreen events.onexitfullscreen Action Event
  • This event will be called when switching back from the fullscreen mode to the normal window mode.
Attribute nameFull variable nameTypeDefault value
onxmlcomplete events.onxmlcomplete Action Event
  • This event will be called when the loading of the xml file or the xml code of scene was completed.
  • After this event the user-control, the pano-viewing and the dynamic loading of the pano images will start.
Attribute nameFull variable nameTypeDefault value
onpreviewcomplete events.onpreviewcomplete Action Event
  • This event will be called when the loading of the preview image was completed.
Attribute nameFull variable nameTypeDefault value
onloadcomplete events.onloadcomplete Action Event
  • This event will be called when the loading of the pano image is done.
  • When using multi-resolution images, then this event will be called once when all parts for the current-view were loaded completely.
Attribute nameFull variable nameTypeDefault value
onnewpano events.onnewpano Action Event
  • This event will be called when there is a new pano image and all information about it (type, imagesize, hfov, vfov) are available.
Attribute nameFull variable nameTypeDefault value
onremovepano events.onremovepano Action Event
  • This event will be called when the current pano will be removed (e.g. before a new pano will be loaded).
Attribute nameFull variable nameTypeDefault value
onnewscene events.onnewscene Action Event
  • This event will be called when a new scene will be loaded (similar to the onxmlcomplete event but only for scenes).
Attribute nameFull variable nameTypeDefault value
onxmlerror
onloaderror
events.onxmlerror
events.onloaderror
Action Event
Action Event
  • These events will be called on errors:
    • The onxmlerror event will be called on xml-loading or xml-parsing errors,
    • and the onloaderror event on image-loading errors (all kind of images: pano, layer or hotspot images).
  • When an event will be not set, then the default error processing will be done - that means a fatal-error on xml-errors and an error message in the krpano log on image-errors.
  • By using the onxmlerror event and some custom error handling, it would be still possible to continue using the viewer on an xml-error.
  • The error message will be stored in the lasterror variable.
  • Note - the onxmlerror event is only available in the HTML5 viewer!
Attribute nameFull variable nameTypeDefault value
onkeydown events.onkeydown Action Event
  • This event will be called when a key is pressed down.
  • They keycode of the pressed key will be stored in the keycode variable.
  • When a key will be hold pressed down, then the system automatically sends repeating onkeydown events. This could be optionally disabled with the control.keydownrepeat setting.
Attribute nameFull variable nameTypeDefault value
onkeyup events.onkeyup Action Event
  • This event will be called when a pressed key is released.
  • They keycode of the released key will be stored in the keycode variable.
Attribute nameFull variable nameTypeDefault value
onclick events.onclick Action Event
  • This event will be called when there was a mouse click in the pano.
Attribute nameFull variable nameTypeDefault value
onsingleclick
ondoubleclick
events.onsingleclick
events.ondoubleclick
Action Event
Action Event
  • Special events for single / double click detection.
  • Different to the normal onclick event (which will be fired instantly on every click) the onsingleclick event can be delayed a bit (up to ~400ms) because it checks if there might be a second click for detection as double-click.
  • There can be either:
    • One single-click event (delayed a bit compared to a normal onclick event).
    • Two single-click events - when the mouse was moved too far between the two clicks.
    • One double-click event - when there were two quick clicks and almost no mouse-movement between them.
  • The mouse.clickx and mouse.clicky variables are storing the coordinates of the mouse where the last click had happened.
  • Touch usage is also supported (e.g. 'tap' and 'double-tap').
Attribute nameFull variable nameTypeDefault value
onmousedown events.onmousedown Action Event
  • This event will be called when the mouse button was pressed down in the pano.
Attribute nameFull variable nameTypeDefault value
onmouseup events.onmouseup Action Event
  • This event will be called when the previously pressed mouse button was released.
Attribute nameFull variable nameTypeDefault value
onmousewheel events.onmousewheel Action Event
  • This event will be called when the mouse-wheel was used or when the pano was zoomed by a touch zoom-gesture.
  • The delta of the mouse-wheel usage will be stored in the wheeldelta and wheeldelta_raw variables.
  • On touch devices there is no real mouse-wheel, but this event will be called too when using the 2-finger zooming gesture. The wheeldelta variables will be set to positive or negative values depending if zooming in or out. The wheeldelta_touchscale variable will provide more detailed information about the gesture zooming in this case.
Attribute nameFull variable nameTypeDefault value
oncontextmenu events.oncontextmenu Action Event
  • This event will be called before the contextmenu will be opened and could be used to modify the contextmenu items (e.g. changing the caption or the onclick action) before displaying to match the current situation or need.
Attribute nameFull variable nameTypeDefault value
onidle events.onidle Action Event
Attribute nameFull variable nameTypeDefault value
onviewchange events.onviewchange Action Event
  • This event will be called every time when the current view has been changed or when the pano will be rendered / redrawn.
  • The evaluation of the view settings and the applying of the viewing limitations settings is not done at this event. That means in this event it's still possible to make changes to the view before the final rendering.
  • Note - use this event carefully, when doing too much stuff there it can affect the rendering/execution performance!
Attribute nameFull variable nameTypeDefault value
onviewchanged events.onviewchanged Action Event
  • This event will be called every time when the current view had been changed or when the pano had been rendered / redrawn.
  • Note - use this event carefully, when doing too much stuff there it can affect the rendering/execution performance!
Attribute nameFull variable nameTypeDefault value
onresize events.onresize Action Event
  • This event will be called when the size of the viewer (or the size of the area) has been changed.
  • Additionally the onresize event will be called every time when loading a new pano (e.g. to allow custom user-interface updates).
  • The new viewer size will be stored in the stagewidth and stageheight variables.
  • The size of the new area size will be available via the area.pixelwidth and area.pixelheight variables.
Attribute nameFull variable nameTypeDefault value
onautorotatestart events.onautorotatestart Action Event
  • This event will be called when when the automatic rotation starts.
  • E.g. when the autorotate.enabled setting is enabled and there was autorotate.waittime long no user interaction or when the autorotate.start() action was called.
  • It could be used to show a special kind of auto-tour-mode user-interface (or e.g. hide the normal user-interface).
Attribute nameFull variable nameTypeDefault value
onautorotatestop events.onautorotatestop Action Event
  • This event will be called when the automatic rotation stops.
  • Typically when the user interrupts the rotation or when the autorotation gets disabled or stopped.
  • It could be used to restore everything that was changed in onautorotatestart.
Attribute nameFull variable nameTypeDefault value
onautorotateoneround events.onautorotateoneround Action Event
  • This event will be called when:
    • one 360 degree pan around (for 360x* panos),
    • or one left-right-pan for partial or flat panos was be made.
  • That could be used to switch to the next pano in the tour - e.g. for 'automatic tours'. This can look nice when using the KEEPMOVING flag to blend between the panos during the automatic rotation.
Attribute nameFull variable nameTypeDefault value
onautorotatechange events.onautorotatechange Action Event
  • This event will be called when the autorotate.enabled setting has been changed.
  • Could be used to update the state of the autorotate-button.
<action> show / hide advanced settings
With <action> elements it's possible to define krpano actions.
These actions are similar to functions or procedures in other scripting or programming languages.

The actions can be called from everywhere - from events, from other actions or also from external sources (Javascript, Plugins) via the call interface.

There are two kind of action types:
Normal krpano actions
<action name="..." scope="" args="" autorun="" secure="false" protect="false">
    action1();
    action2();
    ...
</action>
Inside a normal <action> element a sequence of krpano action calls can be placed. These action calls will be executed one after the other when the action gets called.

See here for the syntax and calling conventions of krpano actions:
The calling conventions of krpano actions / functions

Argument / Parameter passing / resolving

When calling an action it's possible to pass arguments / parameters to it.

For accessing the arguments / parameters there are two possibilities:
  1. by placeholder-replacing: (older version method)
    • To get the given parameters in the action code numeric placeholders in the form from %0 to %99 can be used.
    • Where %0 is the name of the action itself, %1 the first parameter, %2 the second parameter and so on.
    • These placeholders can be used anywhere and anyhow in the code.
    • Before the actual action code will be parsed and executed, all placeholders will be replaced by their parameter values.
    • When there will be no parameter for a given placeholder, the value 'null' will be used.
    • To use the % character in the action, %% need to be used.
  2. by argument-to-variable-mapping: (recommended, new)
    • For actions with a local scope an args attribute can be added to the <action> element. For example:
      <action ... args="var1, var2, var3">
    • In that args attribute variables names for the given action arguments / parameters can be defined (separated by commas).
    • Each action argument will be mapped to a new variable in the local scope with the name that was set in the args attribute.
    • These variables can be used normally like any other variables in the action code (e.g. read via get / calc / copy).
    • When there will be no action argument for a given variable, the value 'null' will be used for it.
    • Using the variable-mapping can be very useful when working with values that contain quote or comma characters. The normal placeholder-replacing can be problematic in such cases.
Note - it would be recommend to use the argument-to-variable-mapping where possible. Actions without %N placeholders can be internally cached, which makes the execution of further calls faster.


Javascript krpano actions (HTML5 only)
<action name="..." type="Javascript" autorun=""><![CDATA[
    ...
    Javascript code
    ...
]]></action>
With Javascript actions it's possible to use directly Javascript code for the action code. This can be faster for more complex things. Javascript actions are only available in the krpano HTML5 viewer.

Inside a Javascript <action> these objects and functions are predefined:
  • krpano - the krpano Interface object (get, set, call, trace, ...).
  • args[] - an array with the passed arguments (args[0] = the name of the action, args[1] = first parameter, ...).
  • caller - the object of the <layer>, <plugin> or <hotspot> element that has called that action.
  • resolve(str) - a function for resolving / getting the value of a krpano variable/path. It works like the default krpano variable resolving - when the given variable/path exists, then the value will be returned, and when not, then the passed value will be returned as it is.
  • actions - an object for accessing the build-in native krpano actions (e.g. call actions.tween(...); to call the tween action);

Attribute nameFull variable nameTypeDefault value
name action[name].name String
Name of the action. (see the name notes)
When no name will be set, an automatic generated name will be used (e.g. could be used for autorun actions that will never be called directly).
Attribute nameFull variable nameTypeDefault value
type action[name].type String
The type of the krpano action:
Attribute nameFull variable nameTypeDefault value
scope action[name].scope String
Define the scope for the new generated variables in the action:
  • global or not set (the default)
    • New variables will be added to the global variable scope.
    • Every other action or code will be able to use them as well.
    • This can be problematic when reusing variable names, especially when the variable type will differ between the usages.
  • local
    • New variables will be added to a local variable scope that exists only in the current action call.
    • When the action is done or calling other actions the local scope and all variables defined in it will be not available anymore.
    • The more complex an action is and the more temporary variables it is using, the more it makes sense to use a local scope for this action to avoid interfering problems with other actions.
  • localonly
    • Some as scope=local but with the difference that all access refers only to the local scope itself by default.
    • Access to the global scope will be only possible by the global object.
  • parent
    • Use the scope from the caller.
    • When the action that is calling the current action has a local scope, then this one can be used/accessed in the current action as well.
  • private:NAME
    • Define a private local scope for the action.
    • The scope will be refereed by a custom unique NAME.
    • This scope keeps alive between multiple action calls and can be shared across several actions.
    • Some as scope=localonly all access refers only to the local scope itself.

Notes:
  • global scope access - When searching for variables, first the local scope will be searched and then the global one. To be able to add variables to the global scope even when using a local scope or to directly access variables at the global scope there is the global object.
  • local scope access - To be able to ensure accessing the local scope (e.g. to define a local variable when there might be already a global variable with the same name) the current local scope is also available as local object in the action code. E.g. use def(local.i, integer, 0); to define a local integer variable named 'i'. For later access in the action code it will be enough to just use 'i' to address that variable.
  • deferred code - Actions that will call other code later (e.g. delayedcall, tween, asyncloop, ...) will use the same scope as in the current action in that code.
  • caller scope - code called from plugin / layer / hotspot events
    • For non-localscope actions:
      When an action (or any code) will be called from a plugin / layer / hotspot event, then the plugin / layer / hotspot object itself will be also available as scope for searching for variables. But only for accessing existing variables! New generated variables will be always added to the global scope.
    • For localscope actions:
      In localscope actions there is always the predefined local variable caller. When the action will be called from an plugin / layer / hotspot event (or by using callwith) then that caller variable will refer to that element. Otherwise the caller variable will be null.

Predefined variables in local scope actions:
  • actionname - The name of the current action.
  • args - A value-array of the arguments.
    • Access by: args[index].
    • Get the number or arguments by: args.length.
  • caller - The plugin / layer / hotspot object when called from there, otherwise null.
  • global - A reference to global scope.
  • local - A reference to the current local scope itself.
  • parentscope - A reference to the scope from the parent action, when there is no parent scope, this refers to the global scope.
Attribute nameFull variable nameTypeDefault value
args action[name].args String
Map the action arguments / parameters to local variables.
Requires the usage of local scope actions.

The args attribute should contains a list of variables names separated by commas.
For example:
<action name="test" scope="local" args="var1, var2, var3">
  showlog();
  trace('var1=',get(var1));
  trace('var2=',get(var2));
  trace('var3=',get(var3));
</action>
and when calling:
test(1.0, 'abc', get(version));
the trace output will be:
var=1.0
var2=abc
var3=1.19-pr15

The arguments are also available via an args value-array inside the action code.
Attribute nameFull variable nameTypeDefault value
autorun action[name].autorun String
Should the action run automatically on start.

Possible settings:
  • preinit - 'Pre-Initialize' - run this action at initialization before any any other event or action (also before the onstart event).
  • onstart - run this action on startup (directly after the onstart event).
Attribute nameFull variable nameTypeDefault value
protect action[name].protect Boolean false
When protect will be set to true, the action[name].content variable will be not accessible.

This could be to used to protect and hide the source of custom actions (e.g. when additionally defined in an encrypted xml file).
Attribute nameFull variable nameTypeDefault value
secure action[name].secure Boolean false
When secure will be set to true, the action will be callable by the Javascript interface, even when the Javascript interface is disabled.

This makes it possible to implement custom and secure external interfaces.
Full variable nameTypeDefault value
action[name].content String
The inner content of the <action> element. Can be also set or changed dynamically.
Full variable name (read only)TypeDefault value
action.count int 0
The count / number of all <action> elements.


Note - when loading other xml files or scenes, all current defined actions remain unchanged unless they will be defined again and become overwritten this way.
Examples
Call an action on startup:
<krpano onstart="intro();">
  ...
  <action name="intro">
    lookat(0,0,90);
    wait(LOAD);
    lookto(120,10,110);
    lookto(-50,40,110);
    lookto(0,0,90);
  </action>
  ...
</krpano>
Call actions from hotspots and directly use the hotspot properties there:
<action name="overaction">
  tween(scale, 2.0);
  tween(alpha, 1.0);
</action>

<action name="outaction">
  tween(scale, 1.0);
  tween(alpha, 0.5);
</action>

<plugin name="pic1" ...
        onover="overaction();"
        onout="outaction();"
        />

<plugin name="pic2" ...
        onover="overaction();"
        onout="outaction();"
        />
Pass parameters to actions:
<action name="test">
  showlog();
  trace('parameter1=',%1);
  trace('parameter2=',%2);
  trace('fov=',%3);
</action>

<action name="parameterpassingtest">
  test('Test1', 'Test2', get(view.fov));
</action>
<contextmenu> show / hide advanced settings
Customize the right click context menu:
  • Add user defined items...
  • Assign them to krpano action code...
  • Re-order the 'krpano' item...

<contextmenu fullscreen="false"
             native="false"
             versioninfo="true"
             touch="true"
             customstyle=""
             enterfs="Fullscreen"
             exitfs="Exit Fullscreen"
             >
    <item name="..."
          caption="..."
          enabled="true"
          visible="true"
          separator="false"
          showif=""
          onclick="..."
          />
    <item name="..."
          caption="..."
          onclick="..."
          />
    ...
</contextmenu>
Attribute nameFull variable nameTypeDefault value
fullscreen contextmenu.fullscreen Boolean false
Enable/disable the build-in / automatic "Fullscreen" / "Exit Fullscreen" item.

Flashplayer Notes - when using native=true then using the context menu to change the Fullscreen mode is not possible anymore since Flashplayer version 11.3.300.268!

The krpano viewer will automatically hide the fullscreen-item when the Fullscreen-mode is not supported or when the using it from the context-menu is not possible.
Attribute nameFull variable name (Flash only)TypeDefault value
native contextmenu.native Boolean false
Since version 1.16, the krpano viewer uses a non-native, custom-drawn context-menu. This custom-drawn menu allows things like Fullscreen-Mode-switching (not possible anymore in the native Flashplayer menu since the latest Flashplayer updates) and provides an identically look-and-feel between the Flash and HTML5 versions.
To disable this custom-drawn menu to use the native system context-menu of the Flashplayer, set this setting to true.
Attribute nameFull variable nameTypeDefault value
versioninfo contextmenu.versioninfo Boolean true
Show version information of the krpano viewer and the version of the browser or the Flashplayer at the bottom of the context-menu.

Only for the custom-drawn context-menu (when native=false).
Attribute nameFull variable nameTypeDefault value
touch contextmenu.touch Boolean true
Enable/disable the support of the contextmenu on touch devices.
Attribute nameFull variable name (HTML5 only)TypeDefault value
customstyle contextmenu.customstyle String
Define a custom style / look of the contextmenu.

Note - setting a custom contextmenu style will be only possible for touch devices by default. For desktop systems it will be necessary to have a Branding Free License.

Syntax: (Use with care! The values will be not verified!)
customstyle="font|fontsize|lineheight|backgroundcolor|textcolor|disabled-textcolor|borderwidth|bordercolor|borderradius|shadow-x-offset|shadow-y-offset|shadow-blur-range|shadow-color|innerborder|innerbordercolor|padding-top|padding-bottom|seperator-margin|seperator-color|seperator-second-line-color|item-padding|item-borderwidth|item-bordercolor|item-borderradius|item-margin|item-hover-backgroundcolor|item-hover-bordercolor|item-hover-textcolor|item-text-left-margin|item-text-right-margin"
  • font - a font-family name or 'default'.
  • fontsize - a fontsize or 'default'.
  • lineheight - the line-height in percent or 'default'.
  • backgroundcolor - the background-color and the background-transparency - format: 0xAARRGGBB.
  • textcolor - the item text-color.
  • disabled-textcolor - the text-color for disabled items.
  • borderwidth - the width of the border in pixel.
  • bordercolor - the color of the border.
  • borderradius - the radius of the border edges in pixel.
  • shadow-x-offset - the x-offset of the shadow.
  • shadow-y-offset - the y-offset of the shadow.
  • shadow-blur-range - the blur range of the shadow.
  • shadow-color - the color and transparency of the shadow - format: 0xAARRGGBB.
  • innerborder - the width of the inner border in pixel.
  • innerbordercolor - the color of the inner border.
  • padding-top - the padding on top of all items.
  • padding-bottom - the padding on bottom of all items.
  • seperator-margin - the margin around the seperator.
  • seperator-color - the color of the seperator line.
  • seperator-second-line-color - either the color of a second seperator line (like a shadow) or 'none' for no second line.
  • item-padding - the padding around the items.
  • item-borderwidth - the width of the item border in pixel.
  • item-bordercolor - the color of the item border.
  • item-borderradius - the radius of the item border edges in pixel.
  • item-margin - the margin around the items.
  • item-hover-backgroundcolor - the background color when hovering/selecting the items.
  • item-hover-bordercolor - the border color when hovering/selecting the items.
  • item-hover-textcolor - the text color when hovering/selecting the items.
  • item-text-left-margin - the left margin of the item text.
  • item-text-right-margin - the right margin of the item text.

Customstyle Examples

The default contextmenu style for Windows, Linux, iOS and Android (demo):
<contextmenu customstyle="default|default|150%|0xFFFFFF|0x000000|0xBBBBBB|1|0xBBBBBB|0|2|2|8|0x66000000|0|0|2|2|5|0xE0E0E0|none|4|0|0|0|3|0xEEEEEE|0|0|18|12" />

The default contextmenu style for Mac OSX (demo):
<contextmenu customstyle="default|14|default|0xFFFFFF|0x000000|0xBBBBBB|0|0|5|2|2|8|0x66000000|0|0|1|4|5|0xEEEEEE|none|1|0|0|0|3|0xEEEEEE|0|0|20|12" />

A custom style example (demo):
<contextmenu customstyle="Helvetica|16|default|0x55000000|0xFFFFFF|0x555555|1|0xFFFFFF|8|0|0|8|0x44000000|0|0|4|4|6|0x555555|none|4|0|0|0|3|0xEEEEEE|0|0|12|12" />

Fake Windows 7 native look (demo):
<contextmenu customstyle="default|default|default|0xF0F0F0|0x000000|0xBBBBBB|1|0x979797|0|2|2|2|0x66000000|2|0xf5f5f5|0|4|4|0xE0E0E0|0xFFFFFF|3|1|0xF0F0F0|3|0|0xE8EEF6|0xAECFF7|0|18|12" />
Attribute nameFull variable nameTypeDefault value
enterfs
exitfs
contextmenu.enterfs
contextmenu.exitfs
String
String
"Fullscreen"
"Exit Fullscreen"
Set the enter / exit fullscreen mode captions for the automatic fullscreen item.
Full variable name (read only)TypeDefault value
contextmenu.item.count int 0
The count / number of all context menu items.
Attribute nameFull variable nameTypeDefault value
item[..].name contextmenu.item[..].name String
The name of this item (see the name notes).
Attribute nameFull variable nameTypeDefault value
item[..].caption contextmenu.item[..].caption String
The caption of the item, this is the text that will be shown in the context menu.

Special captions:
  • KRPANO
    Can be used to place the "About krpano..." item there.
    When no KRPANO item will be defined in the xml, it will be added automatically as last item. This item can only be removed with the Branding Free License.
  • FULLSCREEN
    Can be used to place the automatic "Fullscreen" / "Exit Fullscreen" item there.
    When no FULLSCREEN item will be defined and contextmenu.fullscreen is set to "true", it will be added automatically as last item. The texts of this item can be changed with the enterfs / exitfs settings.

Caption formating / styling (only for the non-native, custom-drawn contextmenu):
  • The contextmenu items can be formated with simple BB-code-formated HTML code (by using [ ] instead of < >). In the HTML5 viewer all html-tags/styles can be used for styling, but in the Flash version the only the Flashplayer supported HTML tags/styles.

Notes for native=true - the Flashplayer restricts the usage of some keywords in the caption, see here under "Restrictions" for more details: Flashplayer ContextMenu Documentation
Attribute nameFull variable nameTypeDefault value
item[name].enabled contextmenu.item[name].enabled Boolean true
State of the item - enabled or disabled (grayed out)
Attribute nameFull variable nameTypeDefault value
item[name].visible contextmenu.item[name].visible Boolean true
Item visibility
Attribute nameFull variable nameTypeDefault value
item[name].separator contextmenu.item[name].separator Boolean false
Should a separator bar appear above the current item.
Attribute nameFull variable nameTypeDefault value
item[name].showif contextmenu.item[name].showif String
Show this item only when the given condition is true.

Example - to show an item only on full spherical panos:
<item ... showif="view.vlookatrange GE 180" />
Attribute nameFull variable nameType
item[name].onclick contextmenu.item[name].onclick Action Event
Actions to call / execute on click / select.
<network>
Network settings.

<network retrycount="2" />
Attribute nameFull variable nameTypeDefault value
retrycount network.retrycount int 2
The number of automatic download retries on loading (server) errors before showing an error message.
<memory>
Memory usage settings.

<memory maxmem="..." devices="..." />

Note - always use also a devices setting to change the default setting only for special cases and requirements!
Attribute nameFull variable nameTypeDefault value
maxmem memory.maxmem int ...
Set the maximum memory usage for the decoded image tiles in MB. The calculation of the tile memory size in MB is done by: 'tile-image-width * tile-image-height * 4 / 1024 / 1024' (e.g. a 512x512px tile needs exactly 1 MB memory).

When the maxmem limit will be reached, the memory of currently not used (needed/visible) tiles will be freeed/returned.

Note - use this setting with care! It can affect the performance and the browser stability.

The current default settings are:
  • Flash: 350 MB
  • HTML5
    • Desktop: 150-400 MB (depending on the full screen size)
    • Mobile/Tablets: 75 MB (iOS, Android)
Examples
<memory maxmem="350" devices="Desktop+Flash" />
<memory maxmem="250" devices="Desktop+HTML5" />
<memory maxmem="80"  devices="Mobile|Tablet" />
<memory maxmem="50"  devices="iOS8" />
<security>
Security / Cross-Domain related Flashplayer and HTML5 settings.

<security cors="">
    <crossdomainxml url="http://.../crossdomain.xml" />
    <crossdomainxml url="..." />
    ...
    <allowdomain domain="www.other-domain.com" />
    <allowdomain domain="..." />
    ...
</security>
Attribute nameFull variable name (HTML5 only)TypeDefault value
cors security.cors String
HTML5 CORS (Cross Origin Resource Sharing) Images.
Set the default value for the crossOrigin property for all images that will be loaded by the krpano HTML5 viewer.

Allowed values are:
  • off - no CORS usage - the crossOrigin property will not be set.
  • anonymous or an empty string (=default) - CORS without credentials flag
  • use-credentials - CORS with credentials flag

For details about enabling CORS on the server please see here:
http://enable-cors.org/
http://enable-cors.org/server.html

Example:
If your Web-server is an Apache-server, the easiest way to enable CORS would be to put a .htaccess named file with the following content into the folder of the files that should be accessible:
Header set Access-Control-Allow-Origin "*"
Attribute nameFull variable name (Flash only)TypeDefault value
crossdomainxml[...].url security.crossdomainxml[...].url String
Path to the crossdomain.xml on the other server.

Loads a cross-domain policy file from a location specified by the url parameter. By default the Flash Player looks for the policy file located in root of a domain with the filename crossdomain.xml on the server to which a data-loading request is being made. With the crossdomain.url setting the Flash Player can load a policy file from a arbitrary locations.
For more Information have a look at the Adobe site:
http://www.adobe.com/devnet/articles/crossdomain_policy_file_spec.html
Attribute nameFull variable name (Flash only)TypeDefault value
allowdomain[...].domain security.allowdomain[...].domain String
Allow access to other domains (necessary for plugins that want access other domains). You can also specify the special domain "*" to allow access from all domains. Specifying "*" is the only way to allow access to nonlocal SWF files from local SWF files that have been published using Access Network Only for the Local Playback Security option in the Flash authoring tool.
<textstyle>
Deprecated - use the new and extended showtext.xml plugin instead!
This one works basically the same, but it works for Flash and for HTML5.

<lensflareset> (Flash only) show / hide advanced settings
Defines a lensflare set / style.
This set can be referred with the set setting from lensflare elements.

There is only one base image for the all the flares image. The flares will be defined as pice/crop of the base image, but they can have a different color and sizes.

<lensflareset name="." url="%SWFPATH%/krpano_default_flares.jpg">
    <flare pixsize="128"
           pixupos="0"
           pixvpos="0"
           color="0xFFFFFF"
           pos="0.0"
           scale="0.1"
           />
    <flare ... />
    <flare ... />
    ...
</lensflareset>
Full variable name (read only)TypeDefault value
lensflareset.count int 1
The count / number of all currently declared lensflare sets.
There is predefined set named DEFAULT.
Attribute nameFull variable nameTypeDefault value
name lensflareset[name].name String
The name of the current lensflare set (see the name notes).
Use DEFAULT to overwrite the default one.
This name can be referred by the set setting from a lensflare element.
Attribute nameFull variable name (read only)TypeDefault value
index lensflareset[name].index String
The index of the lensflareset element.
Attribute nameFull variable nameTypeDefault value
url lensflareset[name].url String see the text
The path/url to the base image for the flares.
The default value is "%SWFPATH%/krpano_default_flares.jpg".
Full variable name (read only)TypeDefault value
lensflareset[name].flare.count int 0
The count / number of all flare element in this lensflare set.
Attribute nameFull variable name (read only)TypeDefault value
flare[...].index lensflareset[name].flare[...].index int
The index of the current flare element in this lensflare set.
Attribute nameFull variable nameTypeDefault value
flare[...].name lensflareset[name].flare[...].name String
The name of the current flare element (see the name notes).
It will be set automatically if not defined.
Attribute nameFull variable nameTypeDefault value
flare[...].pixsize lensflareset[name].flare[...].pixsize int 0
The pixel size (width and height) of the crop area for the current flare image.
Attribute nameFull variable nameTypeDefault value
flare[...].pixupos lensflareset[name].flare[...].pixupos int 0
The horizontal pixel position of the crop area for the current flare image.
Attribute nameFull variable nameTypeDefault value
flare[...].pixvpos lensflareset[name].flare[...].pixvpos int 0
The vertical pixel position of the crop area for the current flare image.
Attribute nameFull variable nameTypeDefault value
flare[...].color lensflareset[name].flare[...].color int 0xFFFFFF
The mix-color for the current flare image. The source image will be multiplied with this color.
Attribute nameFull variable nameTypeDefault value
flare[...].pos lensflareset[name].flare[...].pos Number 0.0
The position of the flare on the screen:
0.0 = at the start point (at the ath,atv position of a lensflare)
1.0 = opposite position from start point
Good values can be from -2.0 to +5.0.
Attribute nameFull variable nameTypeDefault value
flare[...].scale lensflareset[name].flare[...].scale Number 1.0
The size of the flare in relation to the screen height.
Typical values are from 0.01 to 0.10.
<lensflare> (Flash only) show / hide advanced settings
Defines a lensflare (sun).

<lensflare name="..."
           set="DEFAULT"
           visible="true"
           keep="false"
           ath="0.0"
           atv="0.0"
           size="0.8"
           blind="0.6"
           blindcurve="4.0"
           />
Full variable name (read only)TypeDefault value
lensflare.count int 0
The count / number of all lensflare elements.
Full variable name (read only)TypeDefault value
lensflare.visible Boolean true
Show / hide the whole lensflare layer.
Full variable name (read only)TypeDefault value
lensflare.alpha Number 1.0
Controls the transparency / alpha of the whole lensflare layer.
Full variable name (as3 usage only)TypeDefault value
lensflare.layer Sprite
Actionscript 3 Sprite object of the lensflare layer.
Attribute nameFull variable nameTypeDefault value
name lensflare[name].name String
The name of the lensflare element (see the name notes).
Attribute nameFull variable name (read only)TypeDefault value
index lensflare[name].index int
The index of the lensflare element.
Attribute nameFull variable nameTypeDefault value
set lensflare[name].set String "DEFAULT"
The lensflare set/style to use for this lensflare.
Attribute nameFull variable nameTypeDefault value
visible lensflare[name].visible Boolean true
Visibility of the lensflare element.
Attribute nameFull variable nameTypeDefault value
keep lensflare[name].keep Boolean false
Should this lensflare element be kept or removed when loading a new pano.
See also the loadpano() action.
Attribute nameFull variable nameTypeDefault value
ath lensflare[name].ath Number 0.0
The horizontal position of the lensflare in spherical coordinates (-180 to +180).
Attribute nameFull variable nameTypeDefault value
atv lensflare[name].atv Number 0.0
The vertical position of the lensflare in spherical coordinates (-90 to +90).
Attribute nameFull variable nameTypeDefault value
size lensflare[name].size Number 0.8
The size / scale of the flares from the lensflare element.
Attribute nameFull variable nameTypeDefault value
blind lensflare[name].blind Number 0.6
The blinding factor - how much will it blind, when you look into the sun:
0.0=no blinding, 1.0=full blinding (=white screen)
Attribute nameFull variable nameTypeDefault value
blindcurve lensflare[name].blindcurve Number 4.0
The blinding curve (1.0 - 10.0) - it controls the increase of the strongness of the blinding when getting near the center position of the flare.
<data> show / hide advanced settings
A 'raw' data section. It can be used to store any kind of information or data. krpano will not parse its content. The whole content of the <data> element will be stored in the content property of the resulting data[name] object.

The content itself will be not parsed by krpano, but the xml syntax rules and several automatic xml-entity-resolving processes will still apply to it!
To avoid any kind of xml-syntax-parsing and xml-entity-resolving, put the whole data content inside <![CDATA[ and ]]> tags. This way all characters and xml-tags can be used without getting parsed.

Note - when loading a other xml file, all data tags remain unchanged unless they are defined again in the other xml, then they will be overwritten by the new ones.

<data name="...">
    ...
</data>

With CDATA to avoid xml-parsing:
<data name="..."><![CDATA[
    ...
]]></data>
Full variable name (read only)TypeDefault value
data.count int 0
The count / number of all data elements.
Attribute nameFull variable nameTypeDefault value
name data[name].name int
The name of the data element (see the name notes).
When no name will be set, an automatic generated name will be used (e.g. could be used for data elements that will be accessed only via index (e.g. in a for loop) and never directly).
Full variable name (read only)TypeDefault value
data[name].index int
The index of the data element.
Full variable nameTypeDefault value
data[name].content String
The whole content of the <data> element as text string.
<scene> show / hide advanced settings
The scene elements are technically something like 'inline-xml' files.

They can be used to define the content of a full krpano xml file again inside the current xml file. It is like a external xml, but just inlined / embedded into the current xml.

The content of the scene element will not be parsed or used in any way, until loadscene() with the name of the scene will be called.

The typical usage would be to define several panos from a tour inside just one xml file.

When loading a new external xml file with the loadpano() action, then all currently defined scene elements will be removed.

It is possible to store any custom attributes at the <scene> element - the viewer itself will ignore them, but they can be used for custom actions.

<scene name="..." onstart="">
    ...
</scene>
Full variable name (read only)TypeDefault value
scene.count int 0
The count / number of all scene elements.
Attribute nameFull variable nameTypeDefault value
name scene[name].name String
The name of the scene element (see the name notes).
This is the name to be used when using the loadscene() action.
When no name will be set, an automatic generated name will be used (e.g. could be used for scene elements that will be accessed only via index (e.g. in a for loop) and never directly).
Attribute nameFull variable name (read only)TypeDefault value
index scene[name].index int
The index of the scene element (will be set automatically).
Attribute nameFull variable nameTypeDefault value
onstart scene[name].onstart Action Event
The "onstart" event - here any actions / functions that will be called "on start" of the pano/scene viewing can be defined.
Attribute nameFull variable nameTypeDefault value
content scene[name].content String
The whole unparsed content of the <scene> element as text string.
<set>
Set / define a variable during the xml parsing.

This can be used to set or overwrite special variables, that weren't accessible due normal xml declarations.

<set var="..." val="..." />
Attribute nameTypeDefault value
var String
Any variable name or path.
Attribute nameTypeDefault value
val String
The value that will be set to the variable.
Can be any value, text or expression.
<debug>
Trace / log something during the xml parsing.

Note - Debug messages will be only shown when the debugmode setting is enabled!

<debug trace="..." />
Attribute nameTypeDefault value
trace String
Any text, variable or expression.
